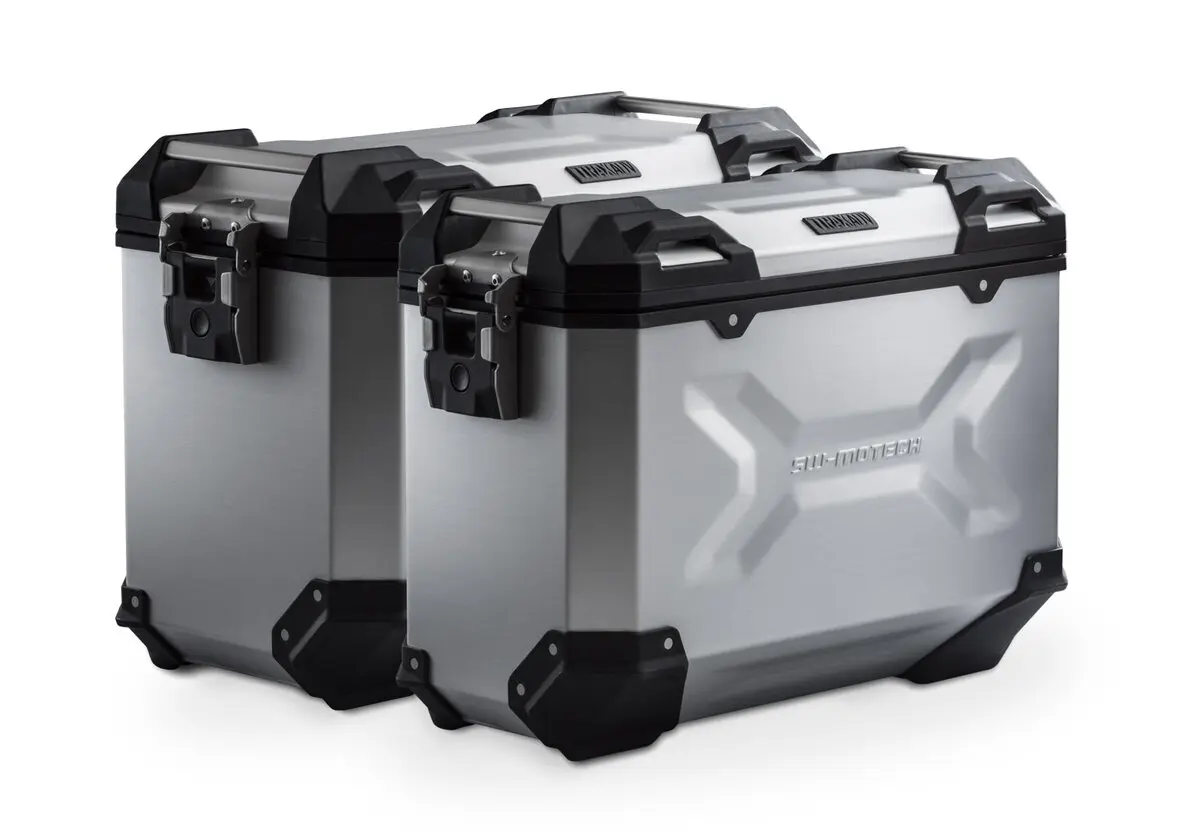

TRAX ADV Aluminium Case System (82 Liters)

TRAX ADV Aluminium Case System (82 Liters)

With this complete solution (capacity: 82 Liters), you have all the components you need to travel with TRAX: two waterproof TRAX ADV side cases, two detachable SW-MOTECH side carriers, adapter kit, lock set, lid limiter and anti-theft protection at an attractive price.

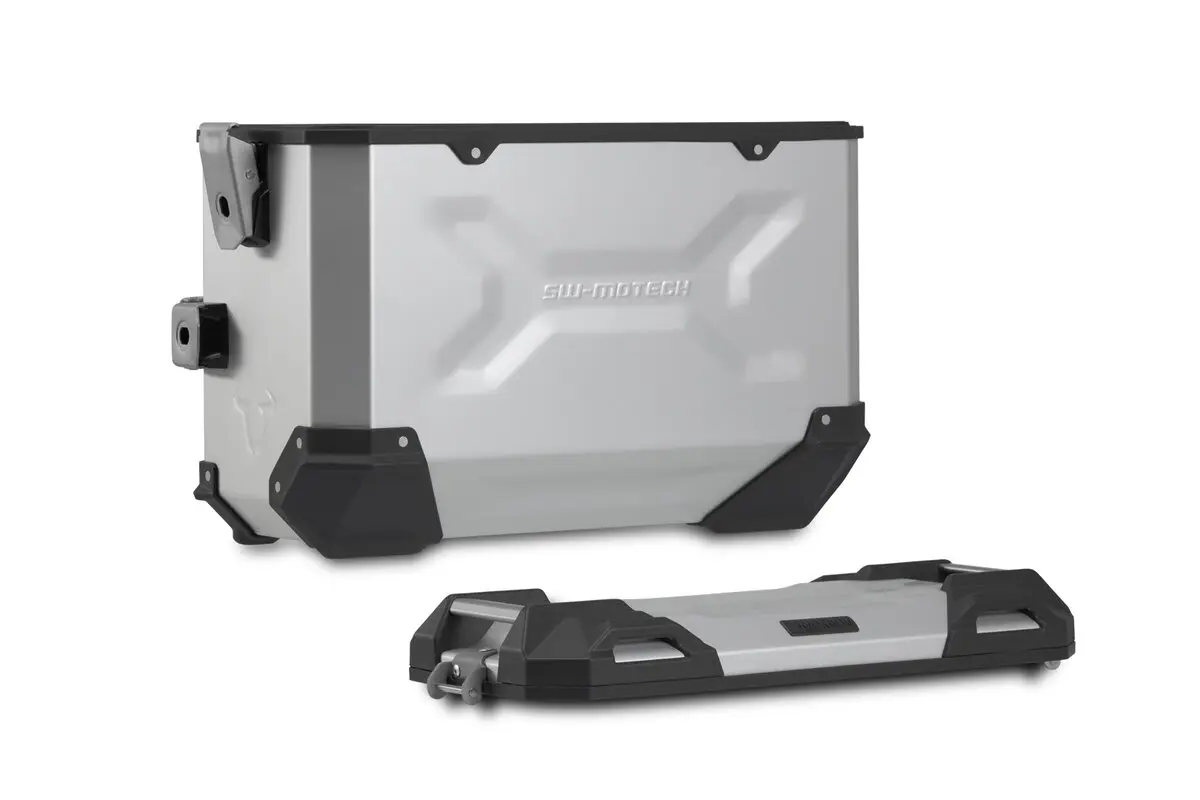

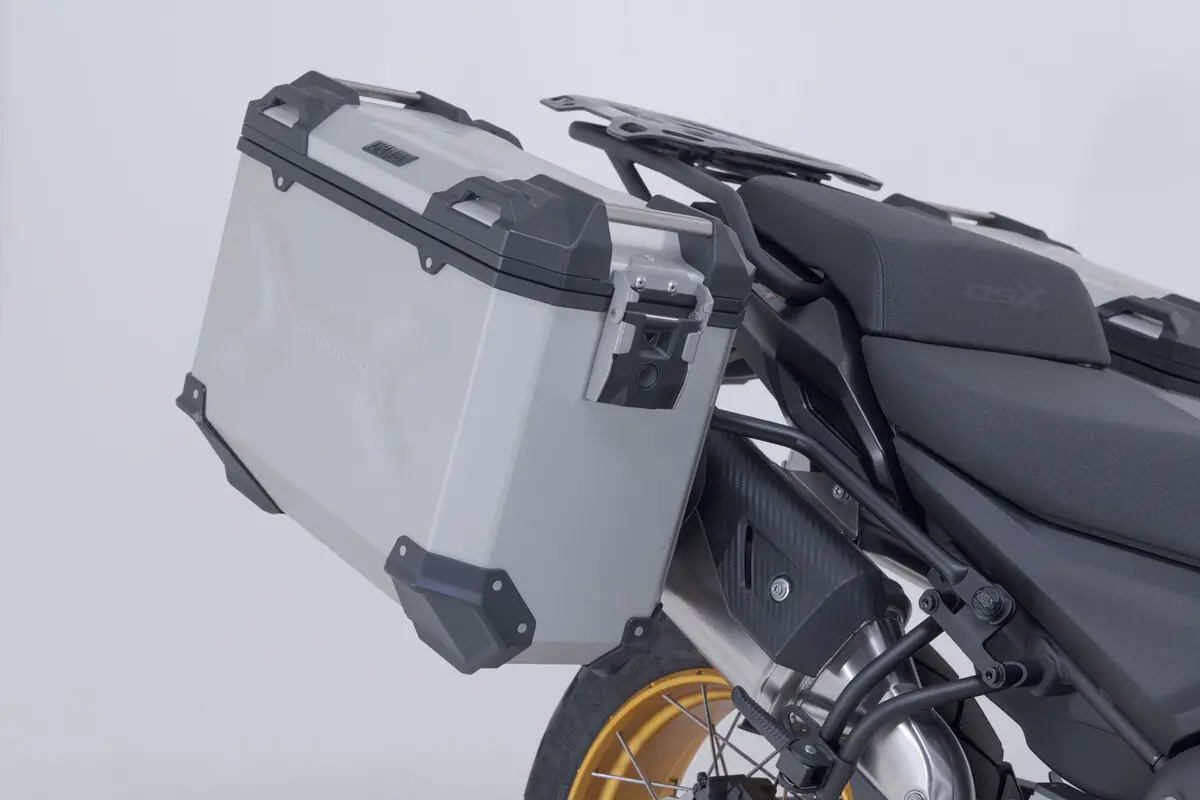

TRAX ADV L (45 LITERS) ALUMINIUM CASE (LEFT):

Protection against oxidation and abrasion thanks to anodized finish.

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps.

Robot-guided welding and self-piercing riveting prevent dampness from getting in.

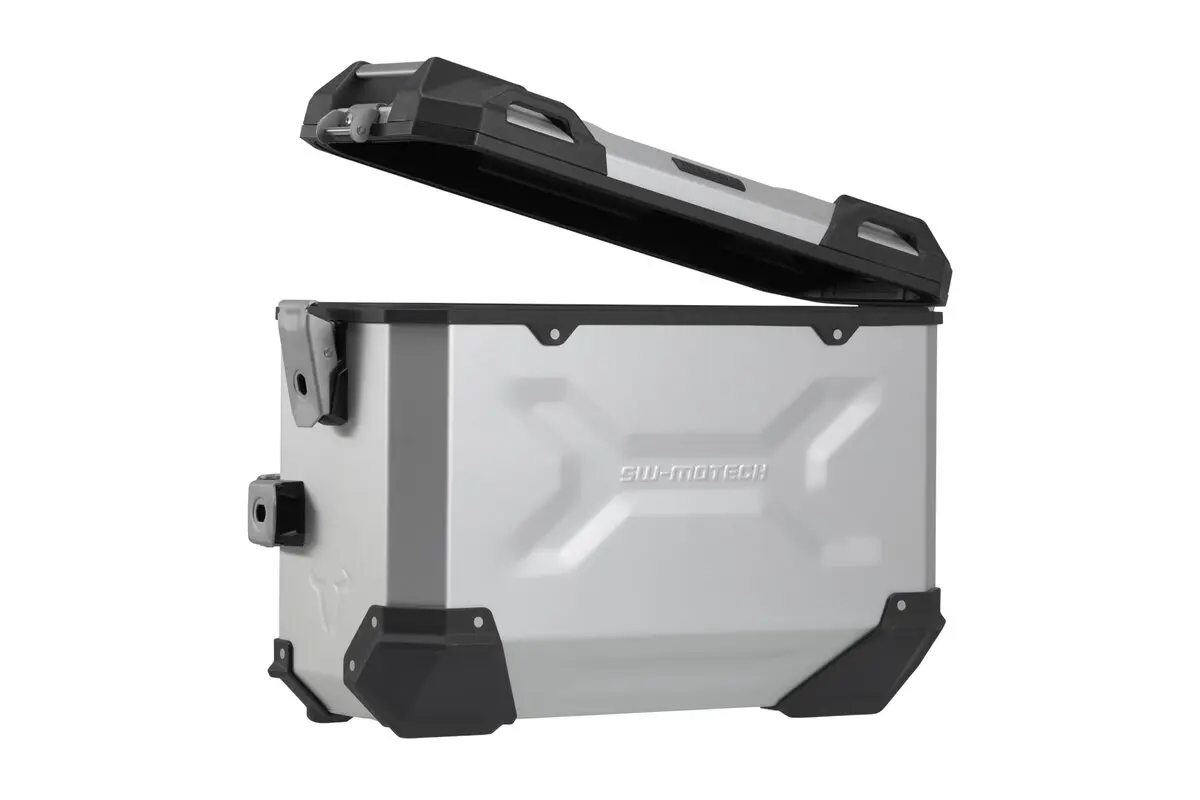

Even when loaded, completely removable lid with quick-release fastener.

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag).

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail.

Hinges made from stainless steel; handles made from anodized aluminium.

Lid limiters provide additional stability when using extra luggage on the lid.

Exchangeable cover gasket.

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in.

Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in. Total Weight: appr. 5,4 kg / appr. 11.9 lb. Total Volume: 45,0 l.

TRAX ADV M (37 LITERS) ALUMINIUM CASE (RIGHT):

Protection against oxidation and abrasion thanks to anodized finish.

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps.

Robot-guided welding and self-piercing riveting prevent dampness from getting in.

Even when loaded, completely removable lid with quick-release fastener.

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag).

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail.

Hinges made from stainless steel; handles made from anodized aluminium.

Lid limiters provide additional stability when using extra luggage on the lid.

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in.

Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in. Total Weight: appr. 5,1 kg / appr. 11.2 lb. Total Volume: 37,0 l

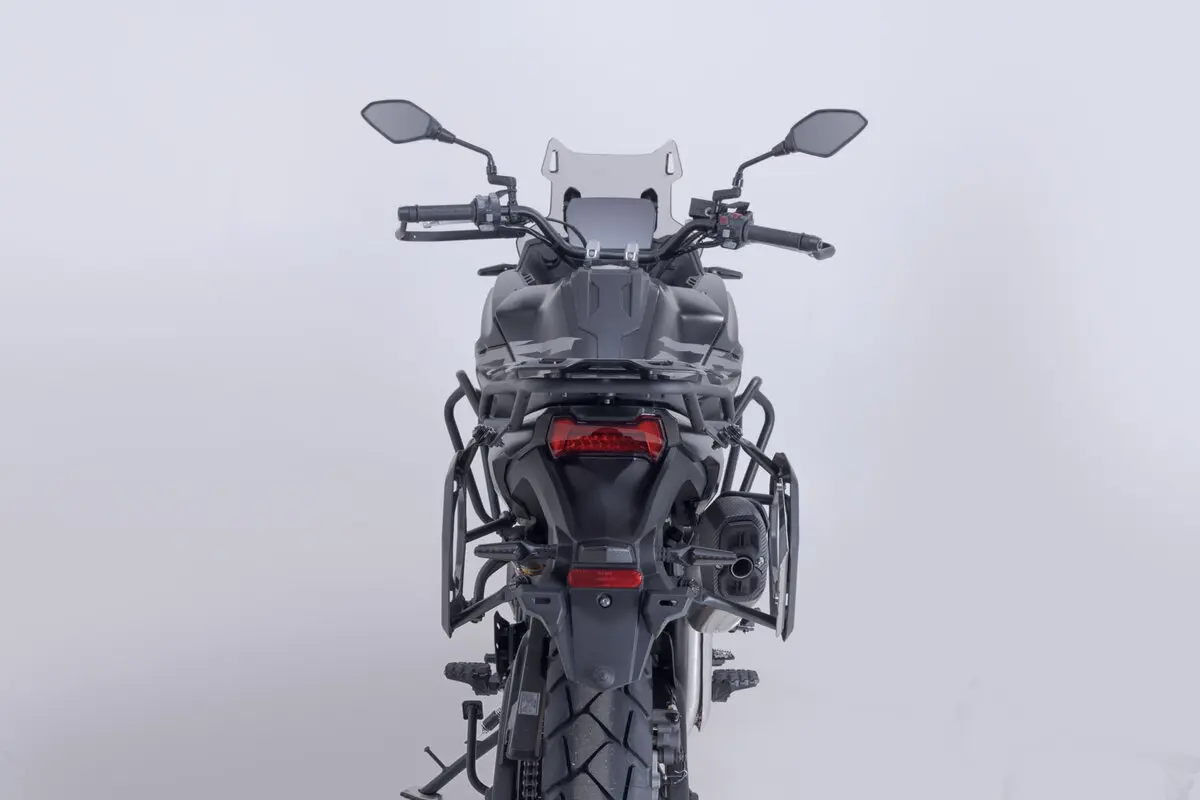

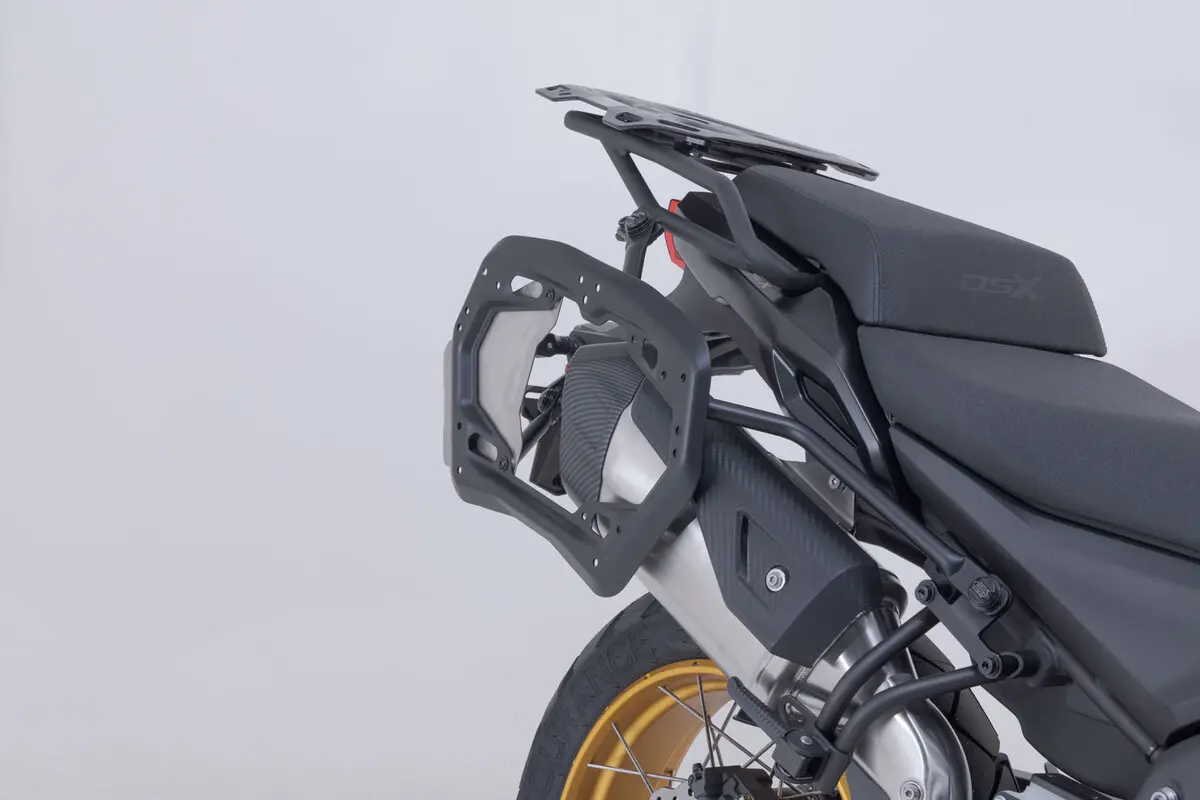

PRO SIDE CARRIER (LEFT & RIGHT):

Extremely durable due to its optimized shape and 2.5 mm thick steel.

Perfect fit, designed to fit close to the bike.

Fully removable with newly developed, even more robust quick-release fasteners.

For permanent mounting, quick-release fasteners can be replaced with standard parts (M8).

Numerous functional bores.

Simple mounting on original mounting points.

Powerful corrosion protection thanks to powder coating.

Material: Steel. Total Weight: appr. 5,0 kg / appr. 11.1 lb. Width built onto motorcycle: 45,5 cm / 17.9 in.

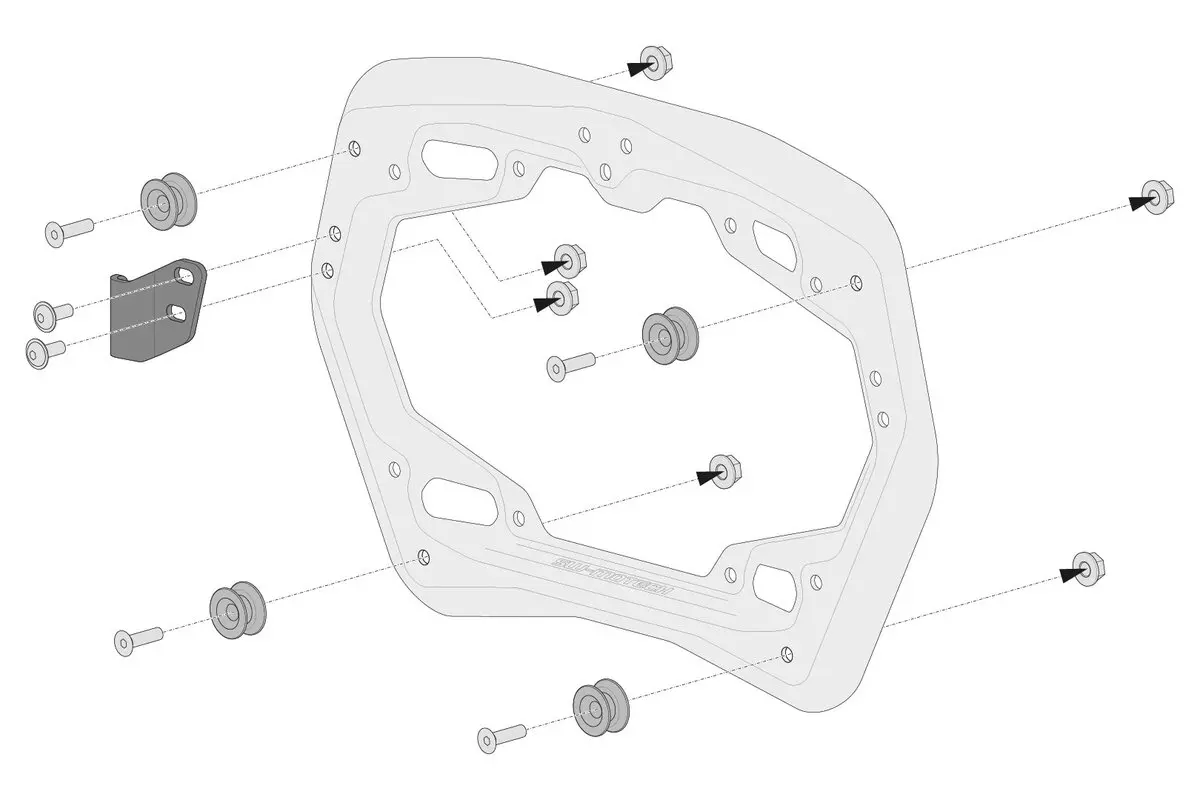

ADAPTER KIT FOR PRO SIDE CARRIER (LEFT & RIGHT):

Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier.

Mounted on to the existing holes of the SW-MOTECH PRO side carrier.

Total Weight: appr. 0,3 kg / appr. 0.7 lb.

TRAX LOCK SET WITH PRO ANTI-THEFT PROTECTION:

9 matching locks with anti-theft protection for PRO side carrier.

Compatible with side cases and top cases from the TRAX ADV and TRAX ION series.

One key for all locks.

Total Weight: appr. 0,5 kg / appr. 1.0 lb.

MULTI-TOOL KEY CHAIN ATTACHMENT:

Multitool as practical key chain.

Quick-release fastener opener for EVO and PRO side carriers.

Hex key (14 mm) - ideal for many motorcycle mirrors.

Hex keys in four additional sizes (8, 10, 12, 13 mm).

Bottle opener.

Key chain eyelet.

Material: Stainless steel. Total Weight: appr. 0,0 kg / appr. 0.1 lb.

SCOPE OF DELIVERY: 1 x TRAX ADV L Aluminium Case, 45,00 l (left), 1 x TRAX ADV M Aluminium Case, 37,00 l (right), 2 x PRO Side Carriers, 2 x Adapter Kits for PRO side Carriers, 1 x TRAX Lock Set with PRO Anti-theft Protection, 1 x Multi-tool Key Chain Attachment, 4 x Lid Limiters, 2 x Storage Bags, Mounting Instructions & Mounting Material.

Aluminium, Stainless Steel, 500 Denier Polyester & Glass-Fiber Reinforced Polyamide.
