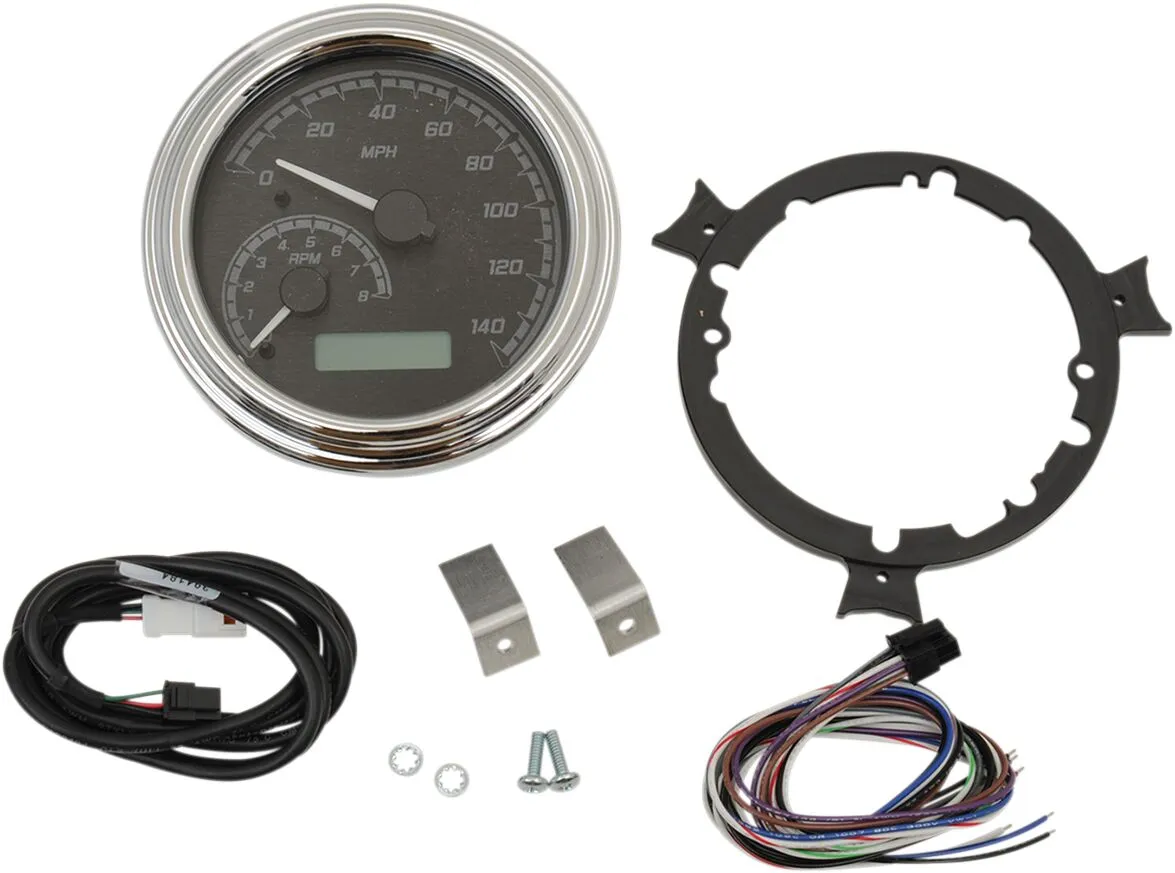

MVX Series Analog Gauge System

MVX Series Analog Gauge System

Has 140 mph speedometer, tachometer, odometer, dual resettable trip meters, and full indicator light complement (turn signal, high beam, neutral, low oil pressure) in one stylish gauge

Systems for '99-'03 models feature seven user-selectable colors for pointer, backlight and LCD message center (red, green, blue, teal, magenta, amber or white)

Systems for '11-'22 models feature 31 user-selectable colors or pointer, backlight and LCD message center

8,000 rpm tachometer has adjustable shift point and can display in digital numeric readout

Resettable miles to service with a warning (user settable countdown) and hour meter

Clock function (12-hour format)

Voltage readout with low-voltage alert

Cylinder head temperature sensor (if bike is equipped with factory sender unit)

Oil pressure sending unit (sold separately, part #s 2212-0513 or DS-250019

Seven-speed gear position indicator, compatible with 3- to 7-speed transmissions

Security system indicator

Automatic turn signal cancelling compatible

Wait to start/check engine light function

Can perform performance calculations such as 0-60 time, top speed and peak rpm recall, 1/4 mile time and speed

Wiring installation is cut/splice; not a direct plug-in gauge

Case diameter measures 4-1/4" and bezel diameter of 4-5/8"
