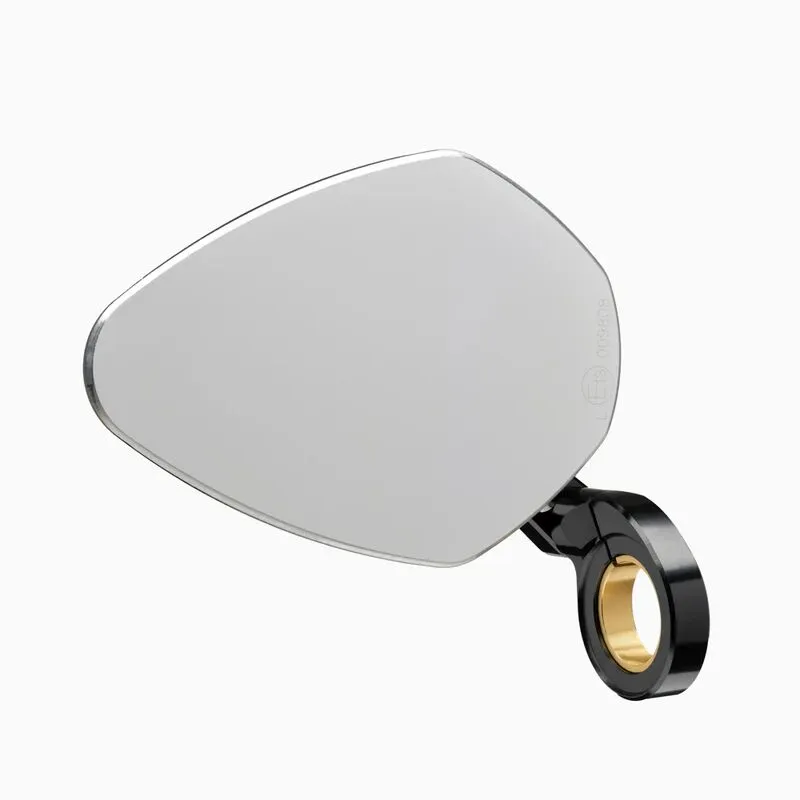

mo.view Sport 60 mm Handlebar End Mirror

mo.view Sport 60 mm Handlebar End Mirror

The handlebar end mirror can be mounted above or below the handlebar. The angle of the mirror arm is individually selectable.

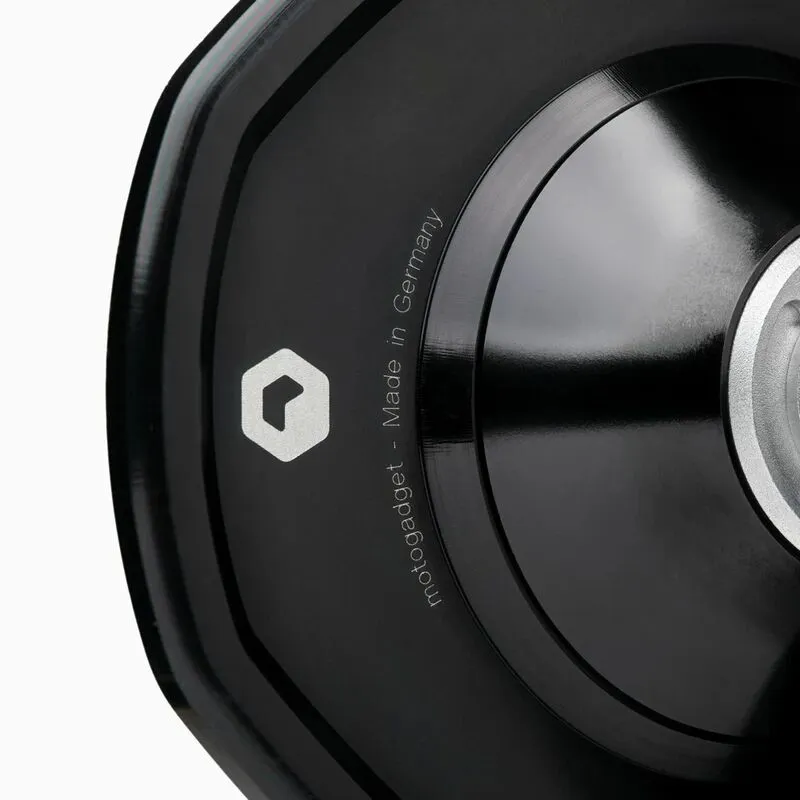

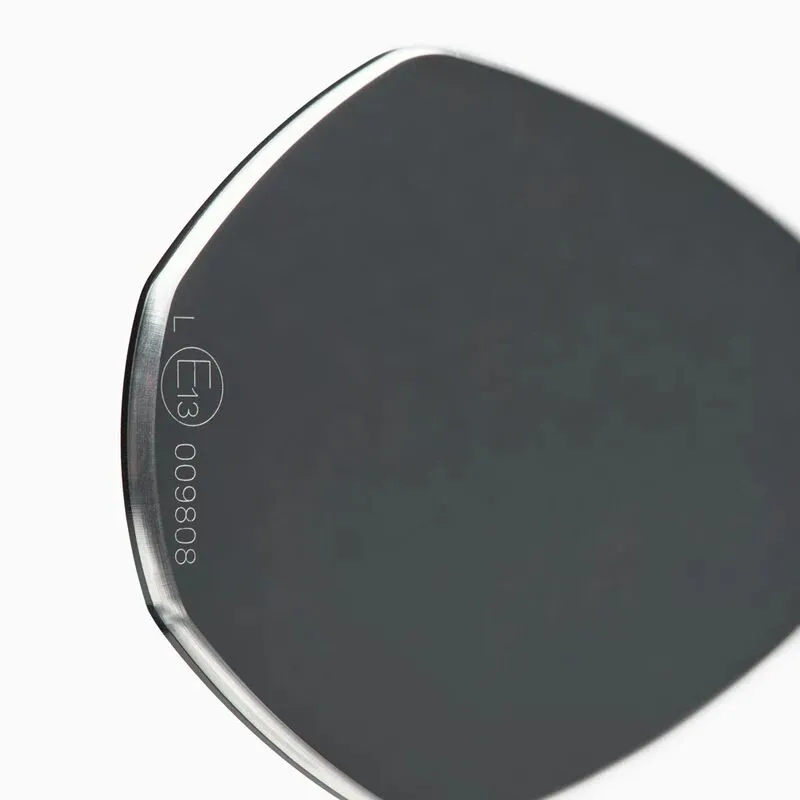

Our glassless mirror series mo.view is unique in the world. The special feature of our mirrors is the patented mirror surface, which is worked directly from the metal of the body. The aluminium itself is the mirror surface.

The mirror body itself becomes very thin and light, creating a weightless design with no rim or frame. The convex mirror surface is manufactured by fly cutting using diamond tools on ultra-precision machines in Berlin. It is then made resistant to oxidation, corrosion and abrasion by a complex plasma coating in a vacuum.

The mirror body, mirror arm and the clamp for the handlebar end are milled on CNC machines from the solid aluminium and anodized high quality.

All screws are made of stainless steel.

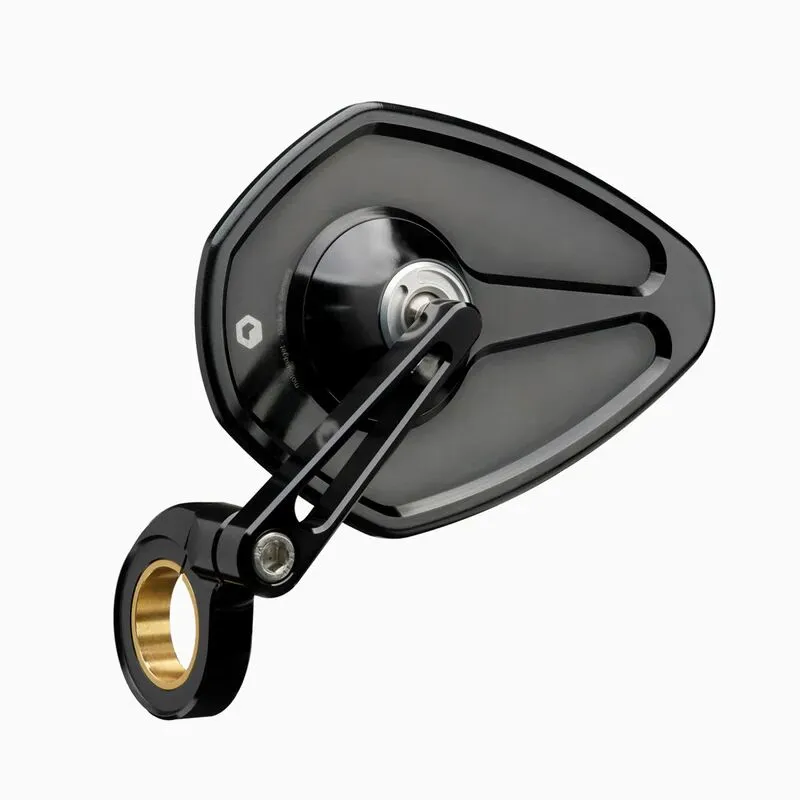

The precise ball joint allows the comfortable and very stable adjustment of the mirror. Glass breakage or fallen out glasses are simply not possible.

The handlebar end mirror can be mounted above or below the handlebars.

The small arm can be swivelled.

The mirror is suitable for the right and left side. It can be mounted directly on the handlebar end (22 mm and 1 inch) or, if the grips and fittings cannot be moved, using the mo.view bar adapter.

Mirror body width: 122 mm.

Mirror body height: 83 mm.

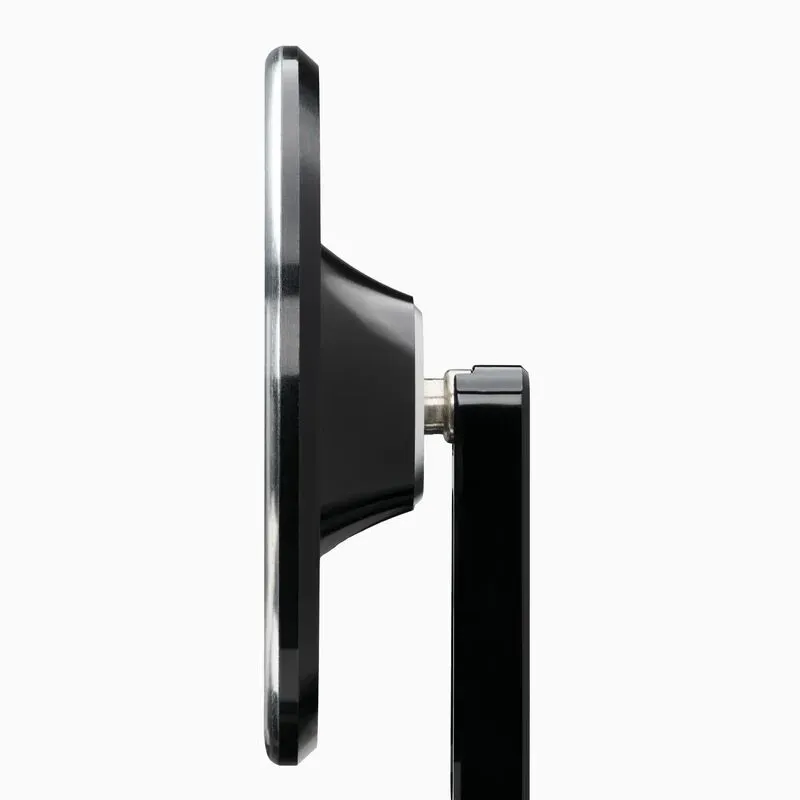

Thickness of the mirror body without ball head: 4.5 mm.

Length of the mirror arm: 72 mm.

Clamp diameter: can be used for 22 mm and 1 inch handlebars.

Clamp width: 10 mm.

Weight: 128 g.

Scope of delivery: 1x rear-view mirror mo.view sport 60 (with ECE marking) with arm, 1x clamp & instructions manual.
