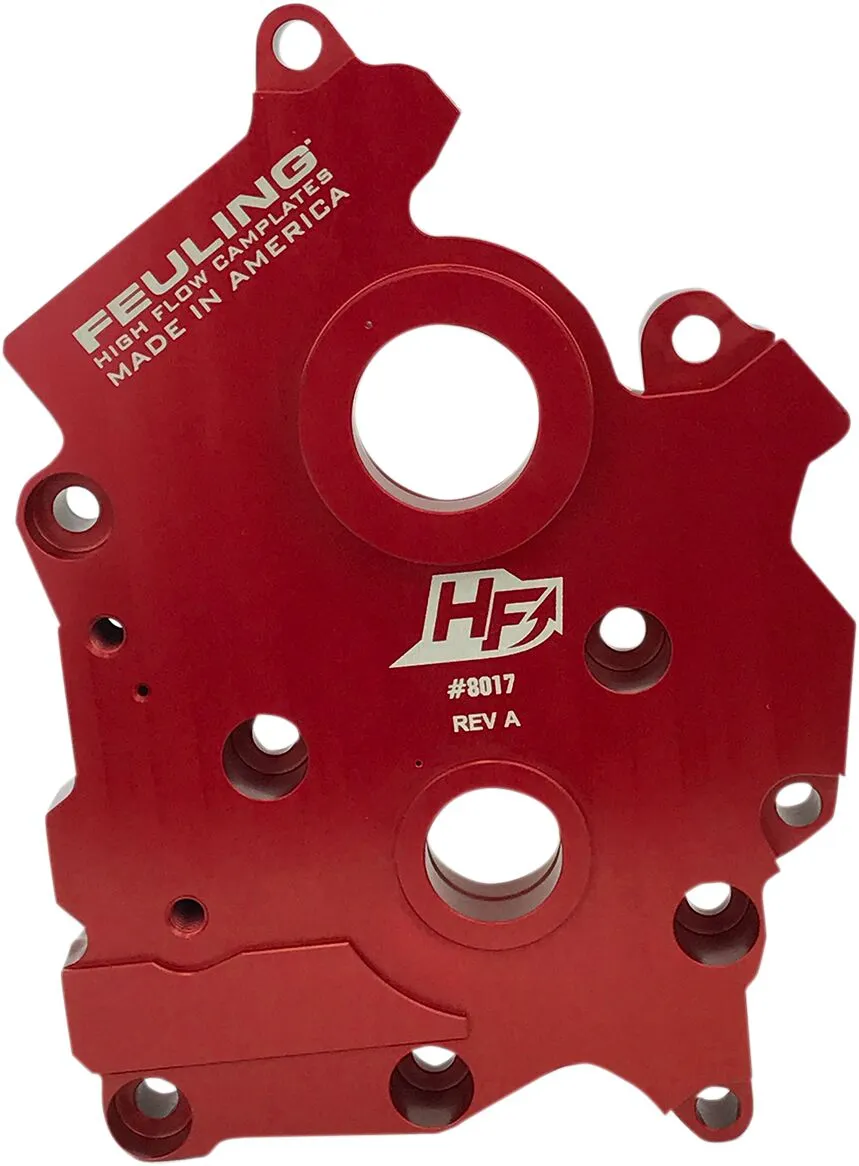

High Flow Camplate

High Flow Camplate

Increase engine oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including the scavenging return holes from the pump to the camplate and into the engine case

Camplate matches the oil port holes on the camplate to the oil holes in the engine case to increase oil flow throughout the engine

Lowers engine temperatures by 15-25 degrees and oil running temperature by 15°-25° when matched with a Feuling® HP+ or RS oil pump

7075 billet aluminum construction, which is 50% harder and stronger than the factory cast and Feuling® OE+ camplates

Increases the strength and hardness of the camplate, holding tighter tolerances under temperature and eliminating flexing and the need for bronze bushings

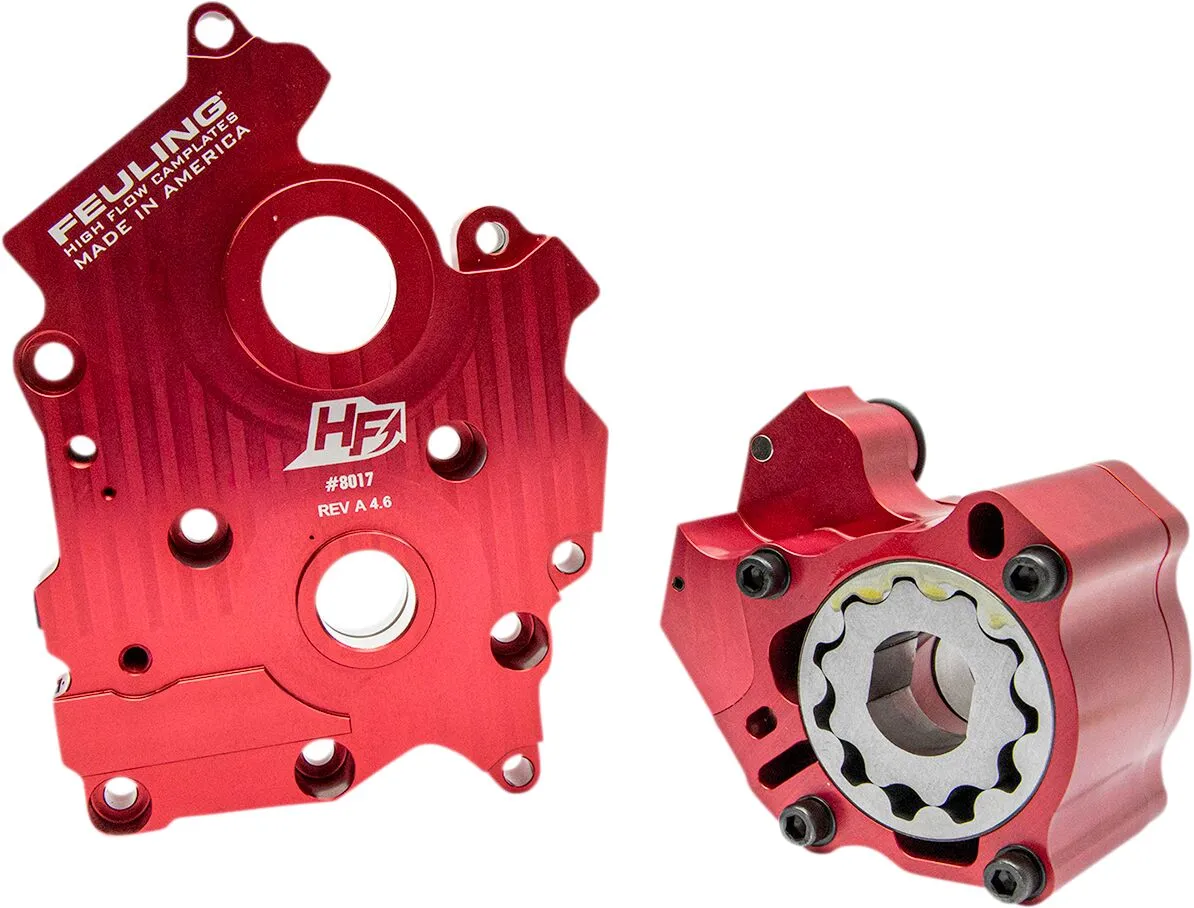

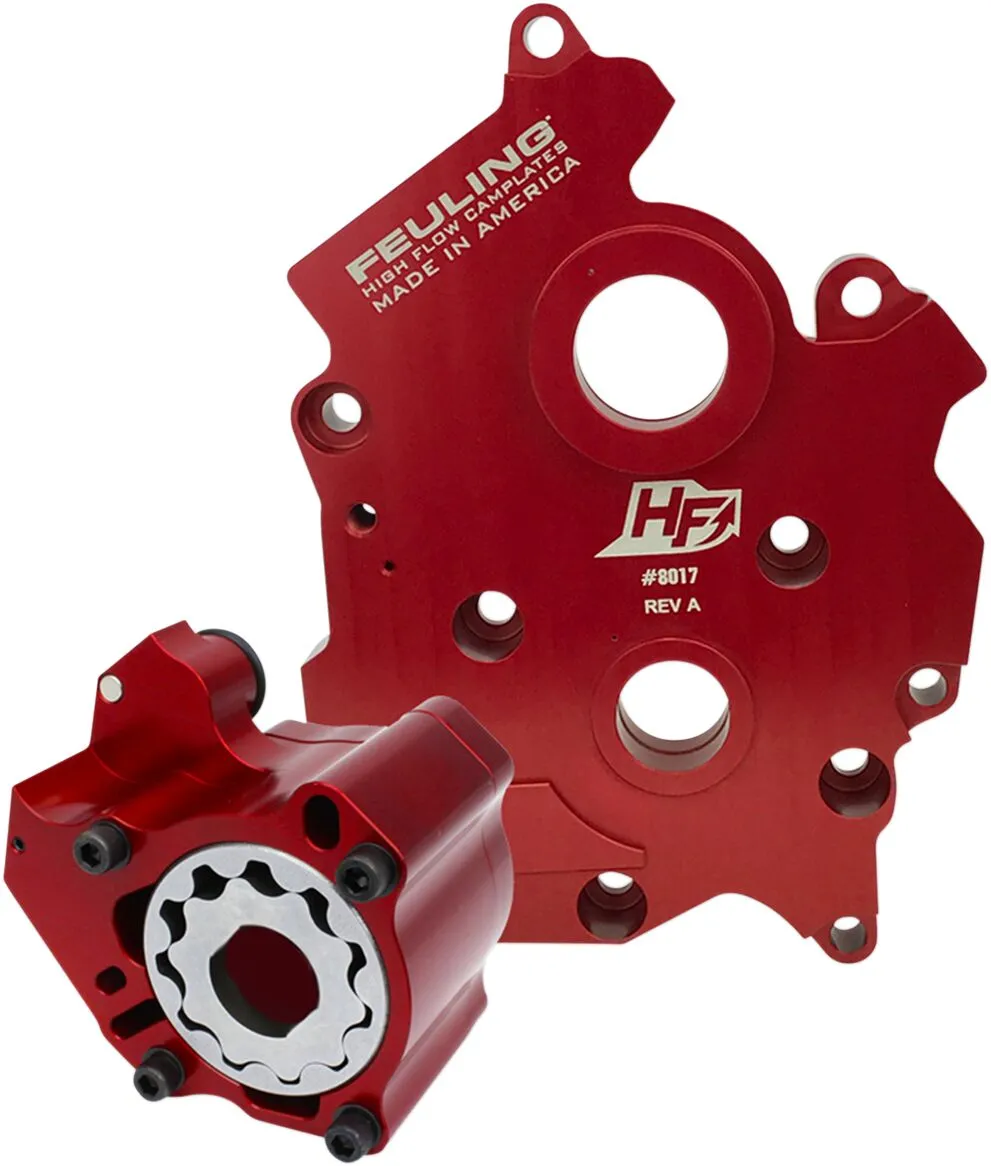

When matched with the Feuling® Race Series Oil Pump, rear wheel power gains of 2 horsepower and 2 ft. lb. of torque can be achieved

Made in the USA

For gear or chain drive cams (block-off plate PART #0932-0036 required when using gear drive cams).

Use Only with Feuling® HP+ and Race Series M-Eight oil pumps.
