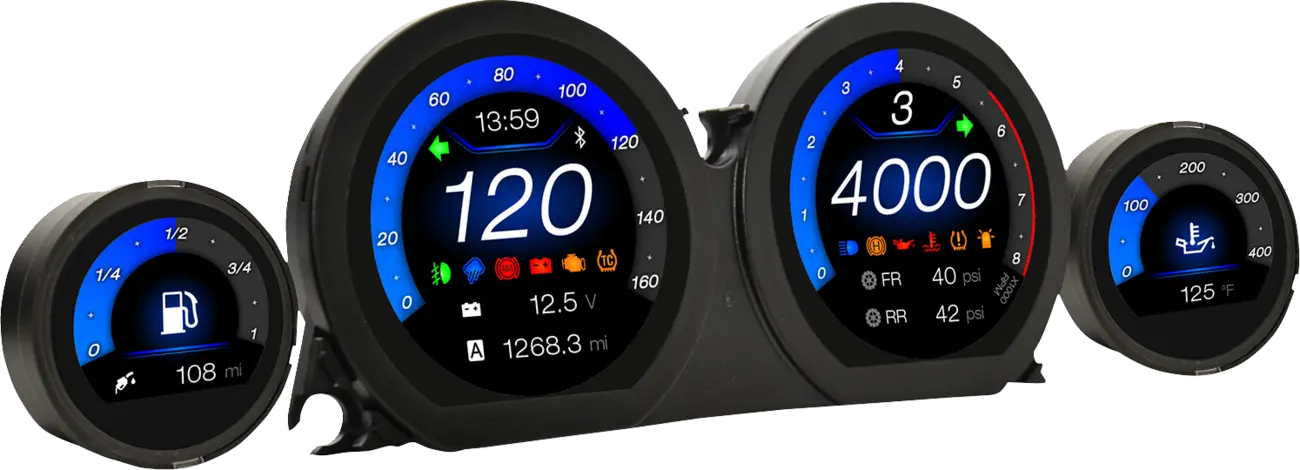

HD-03X | TFT Gauge Set

HD-03X | TFT Gauge Set

Plug and play

Color customization with daytime and nighttime modes

Features a smartphone integration that gives full control of dashboard directly from the device

Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more

Can see vehicle’s location on the app and never have to search for it again in crowded places

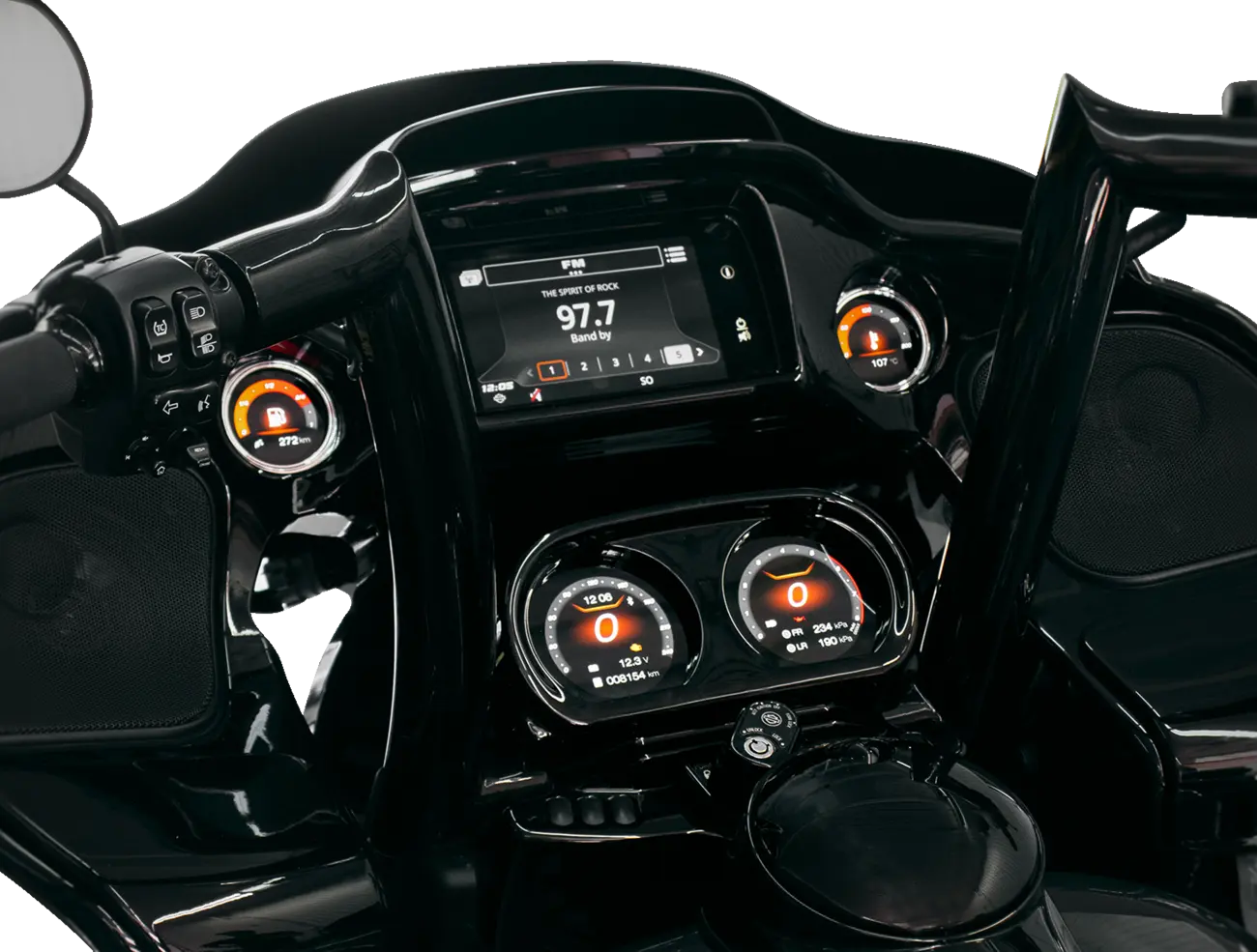

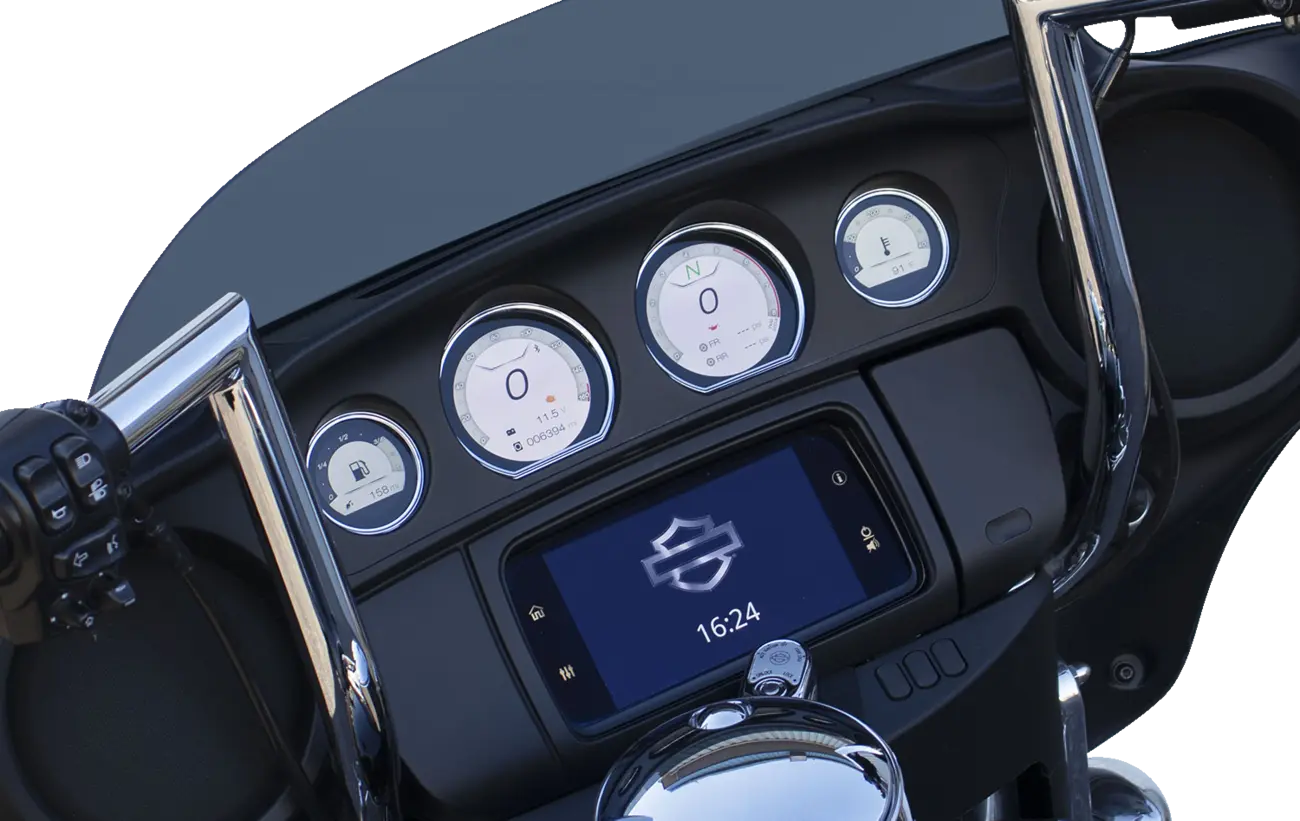

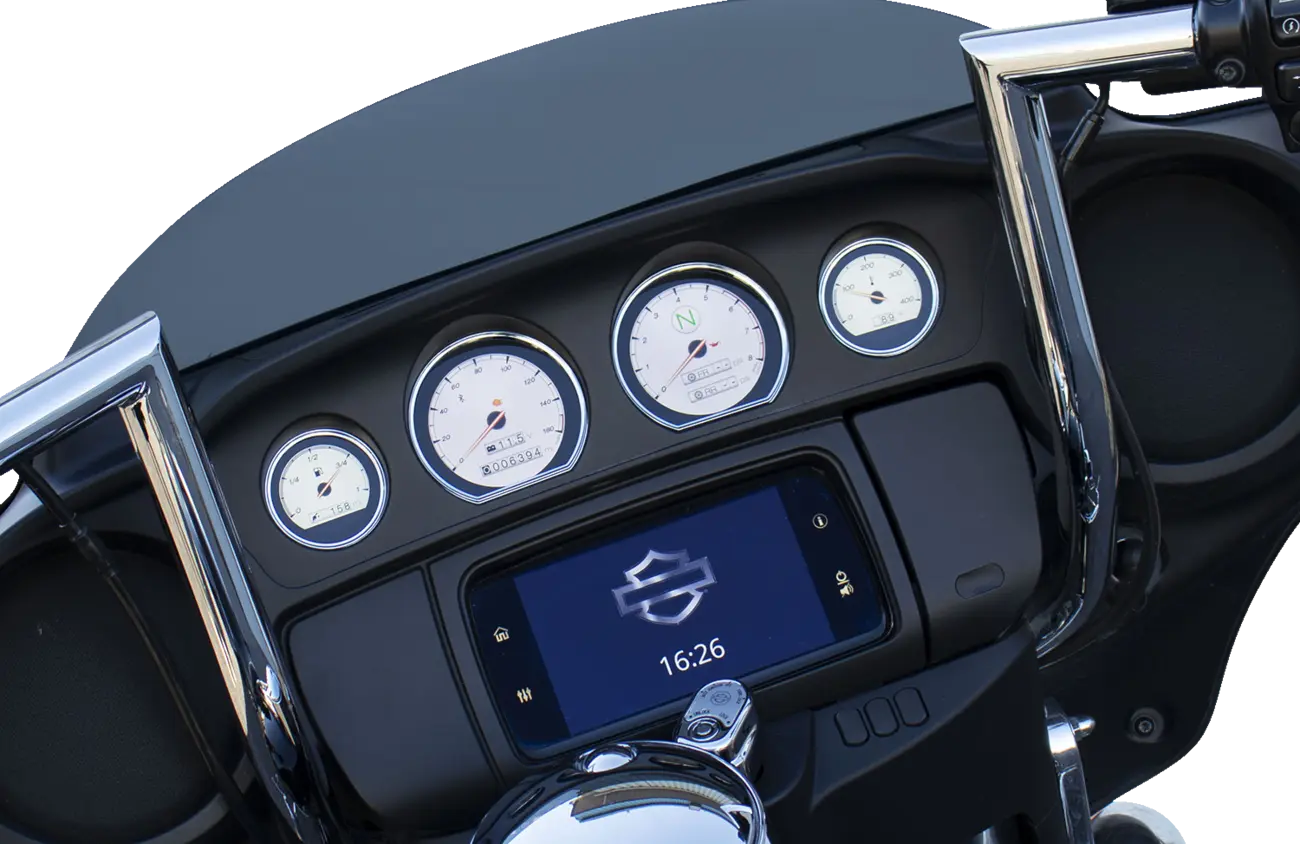

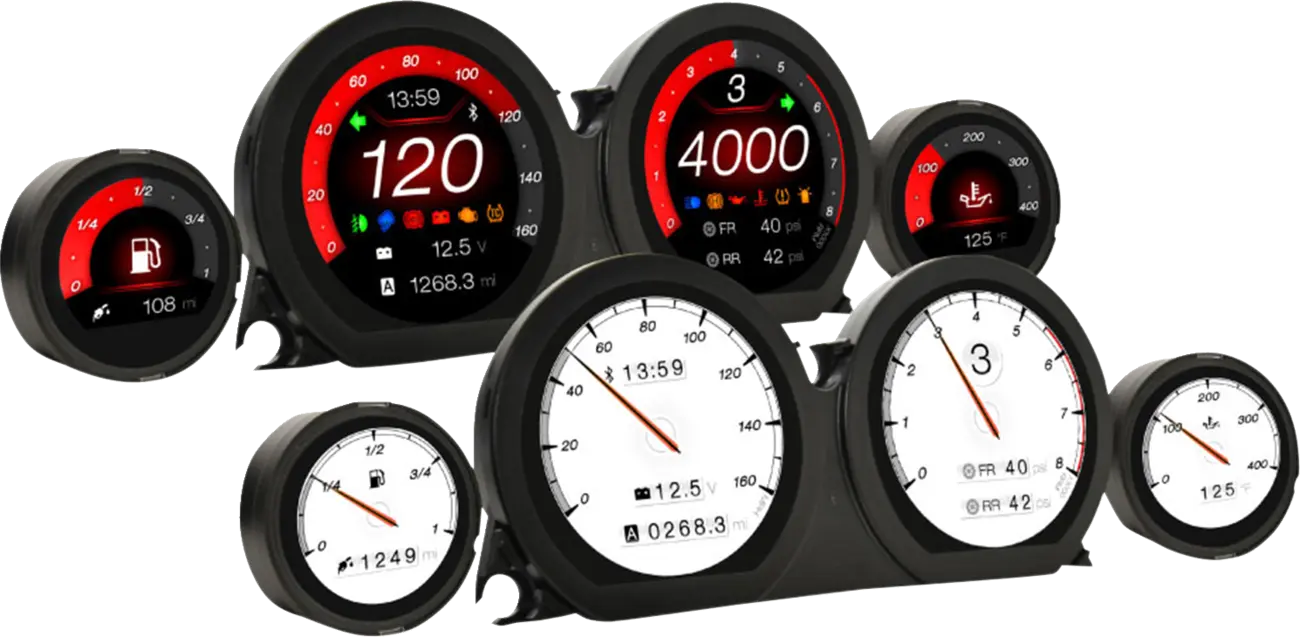

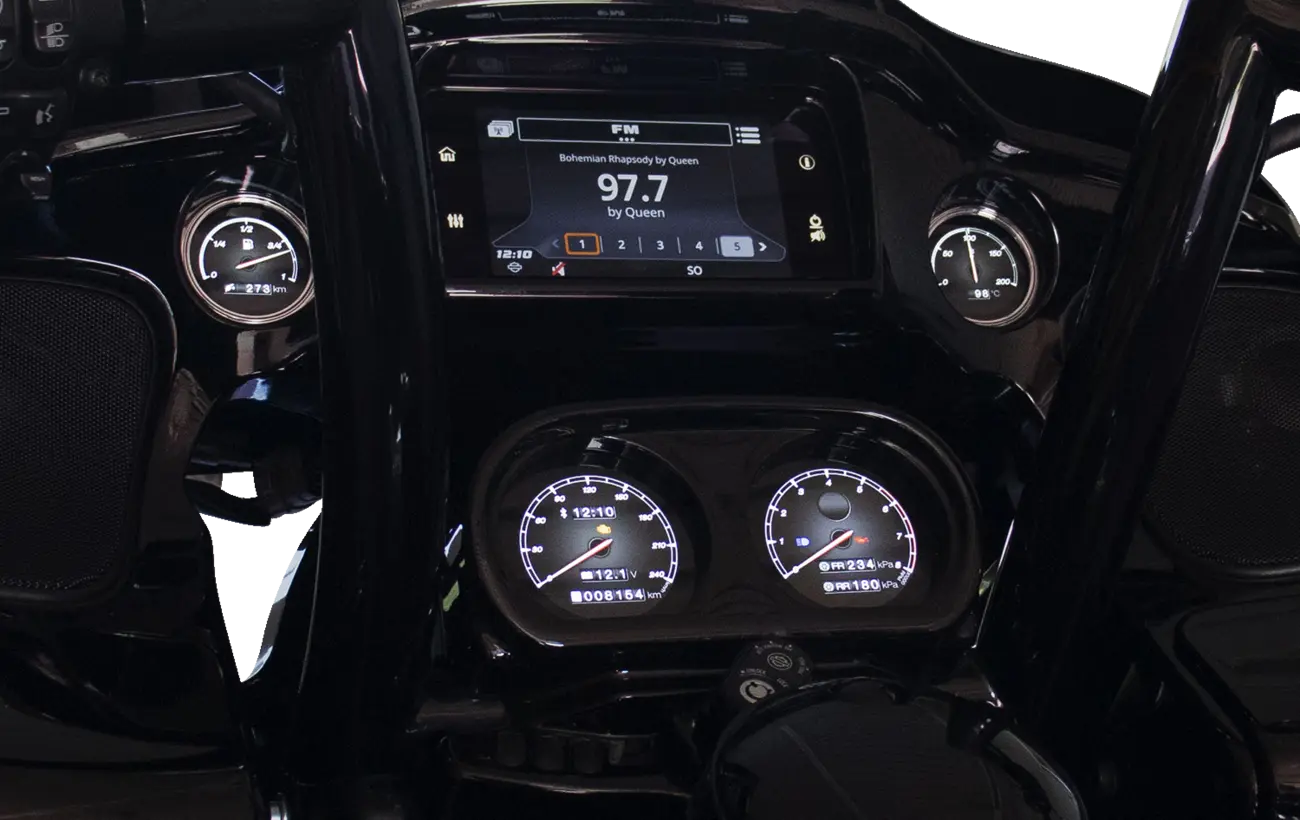

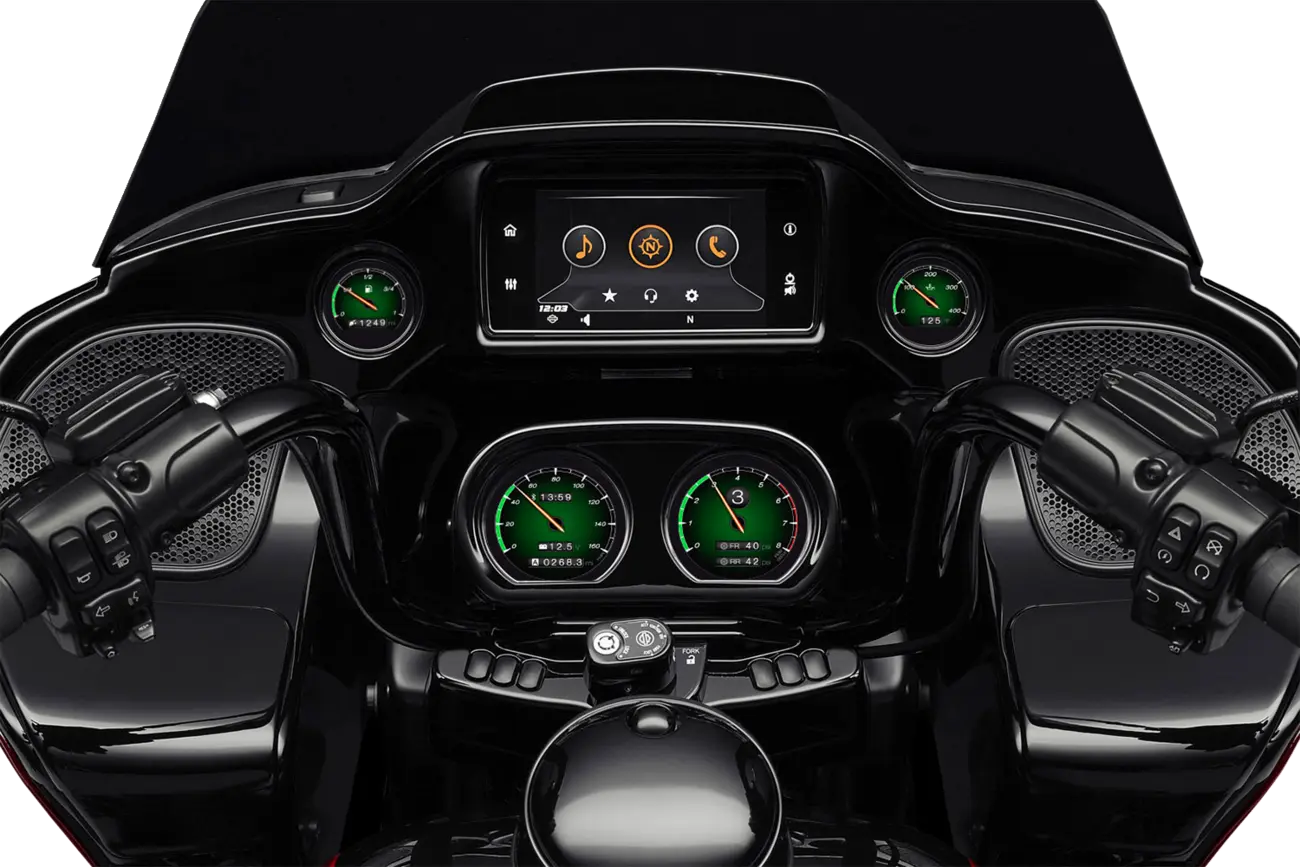

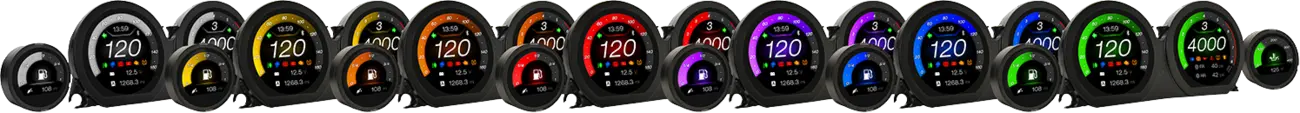

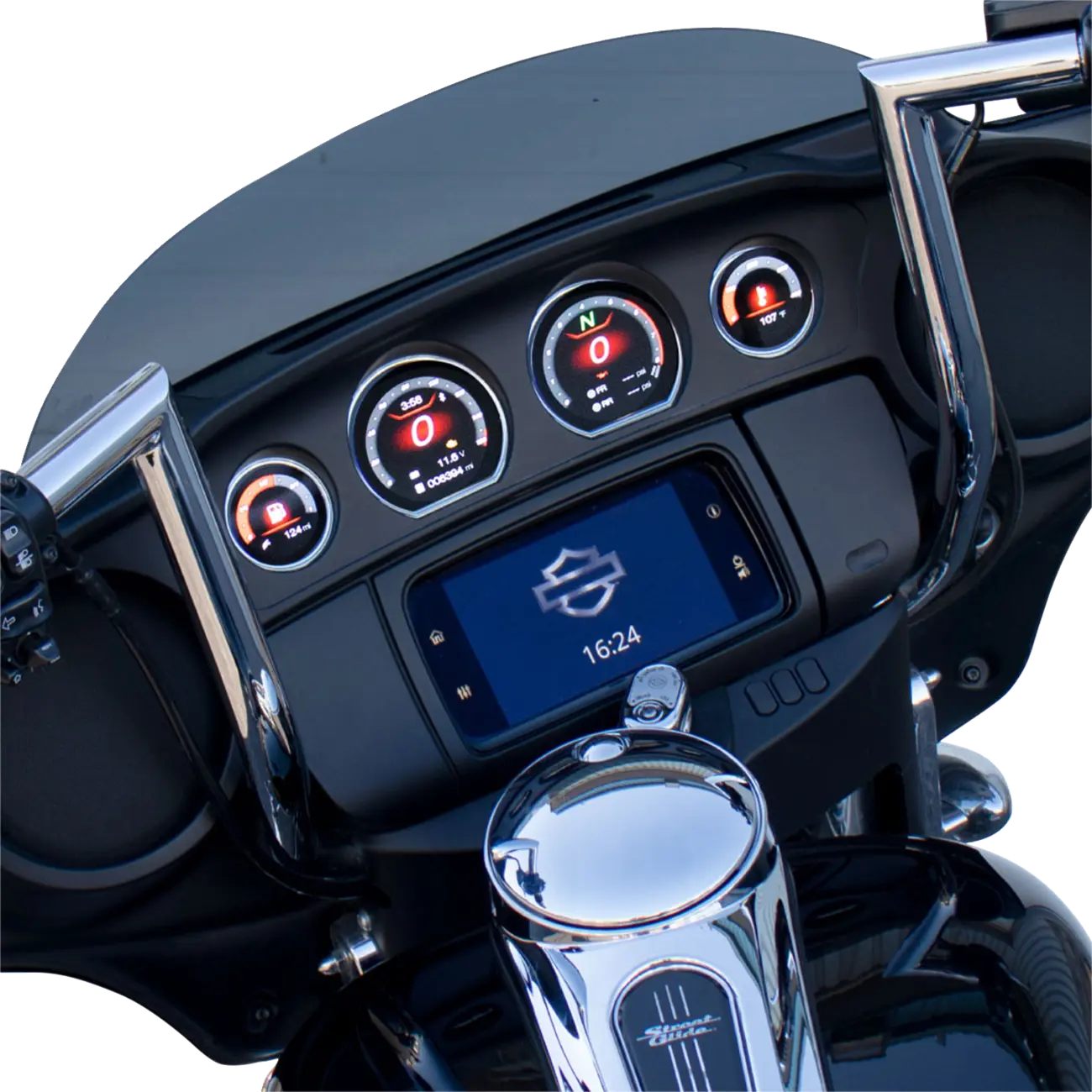

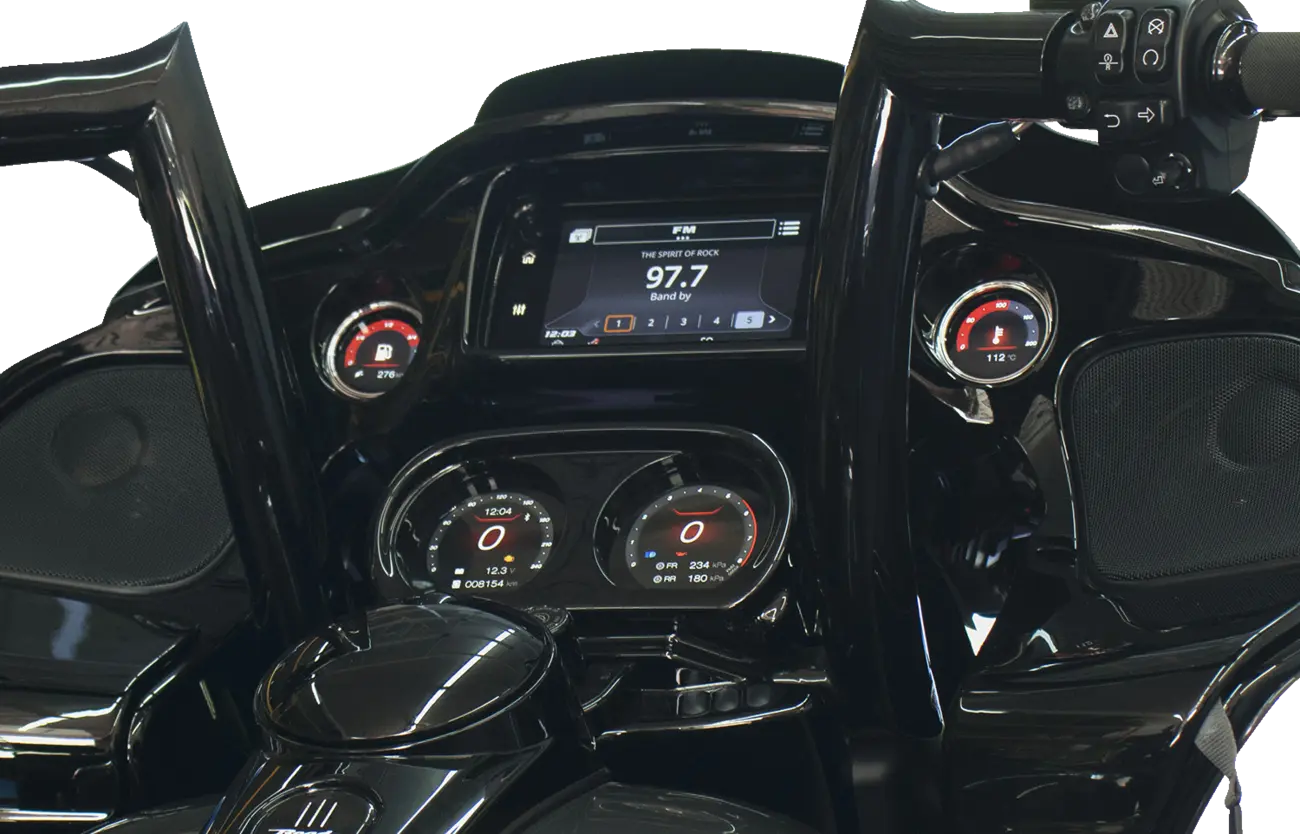

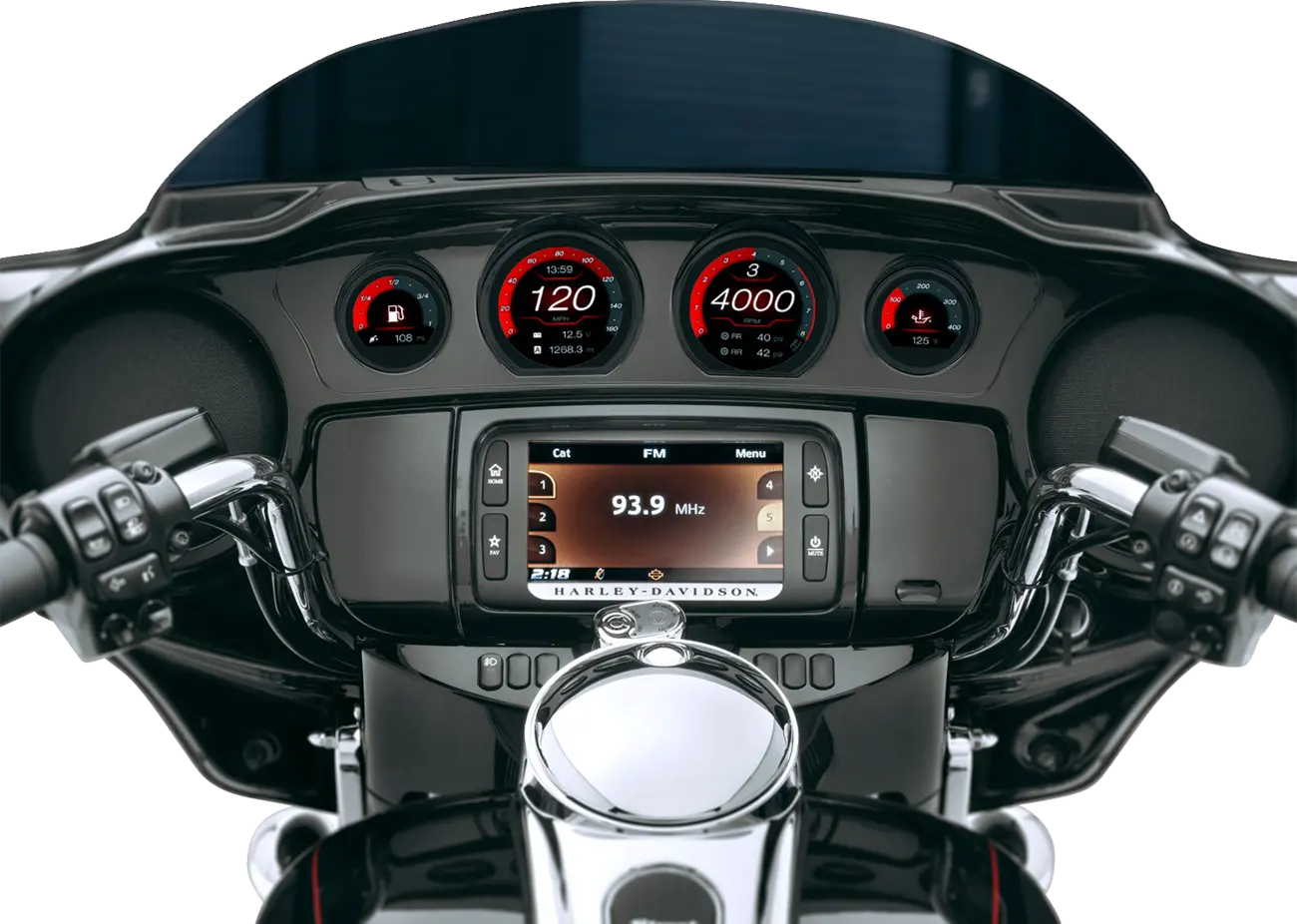

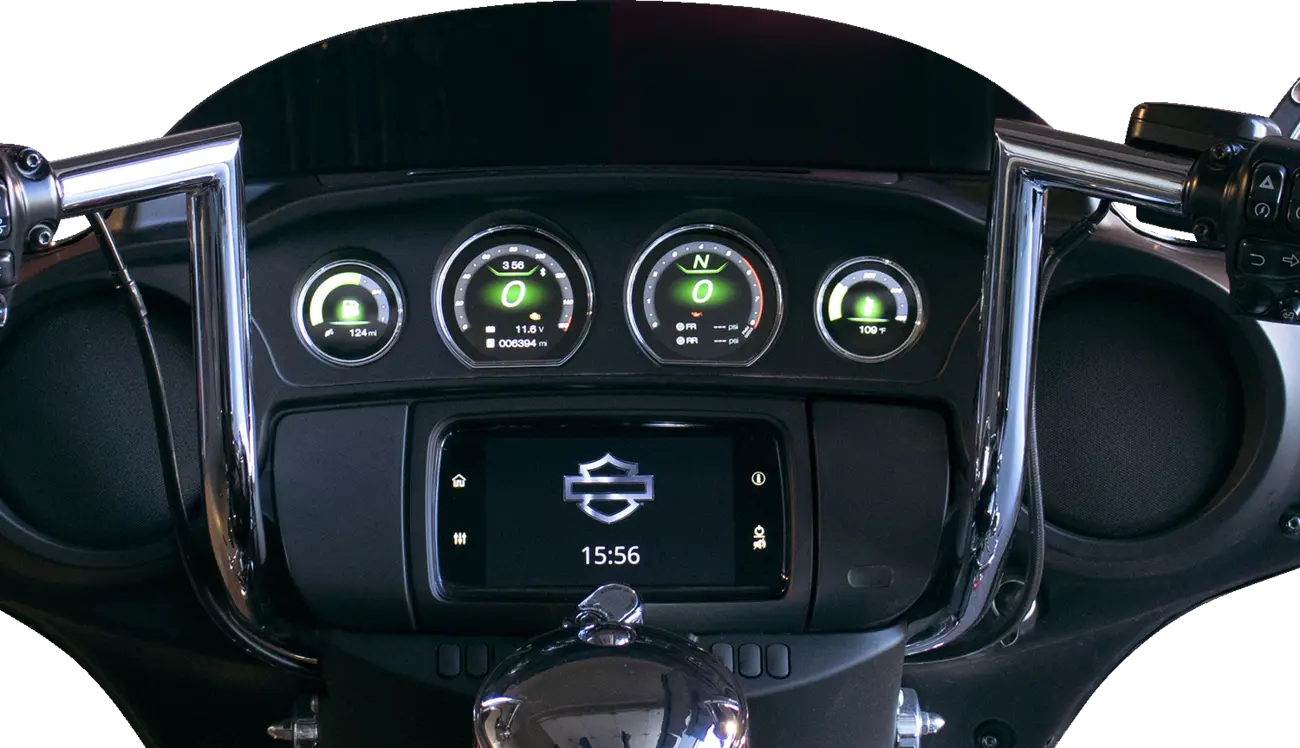

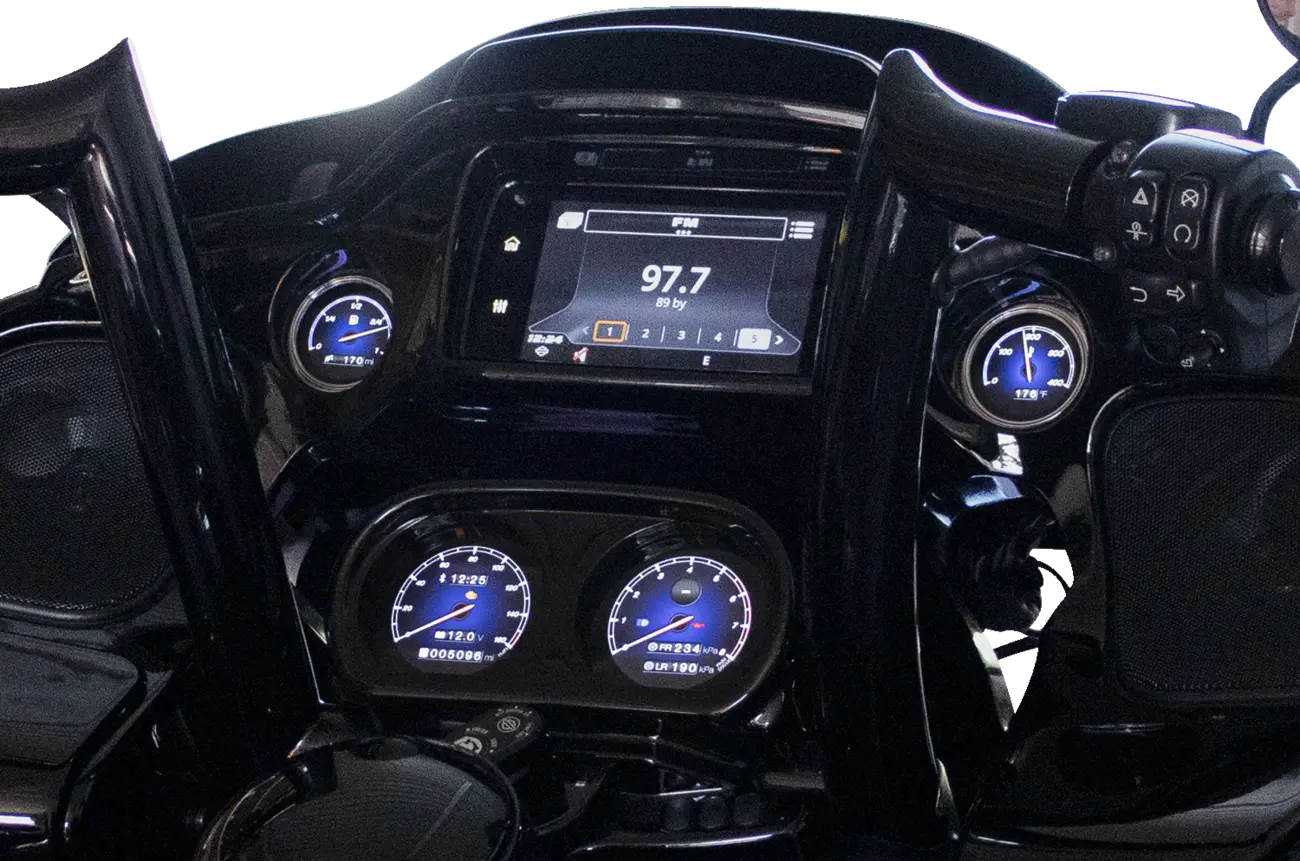

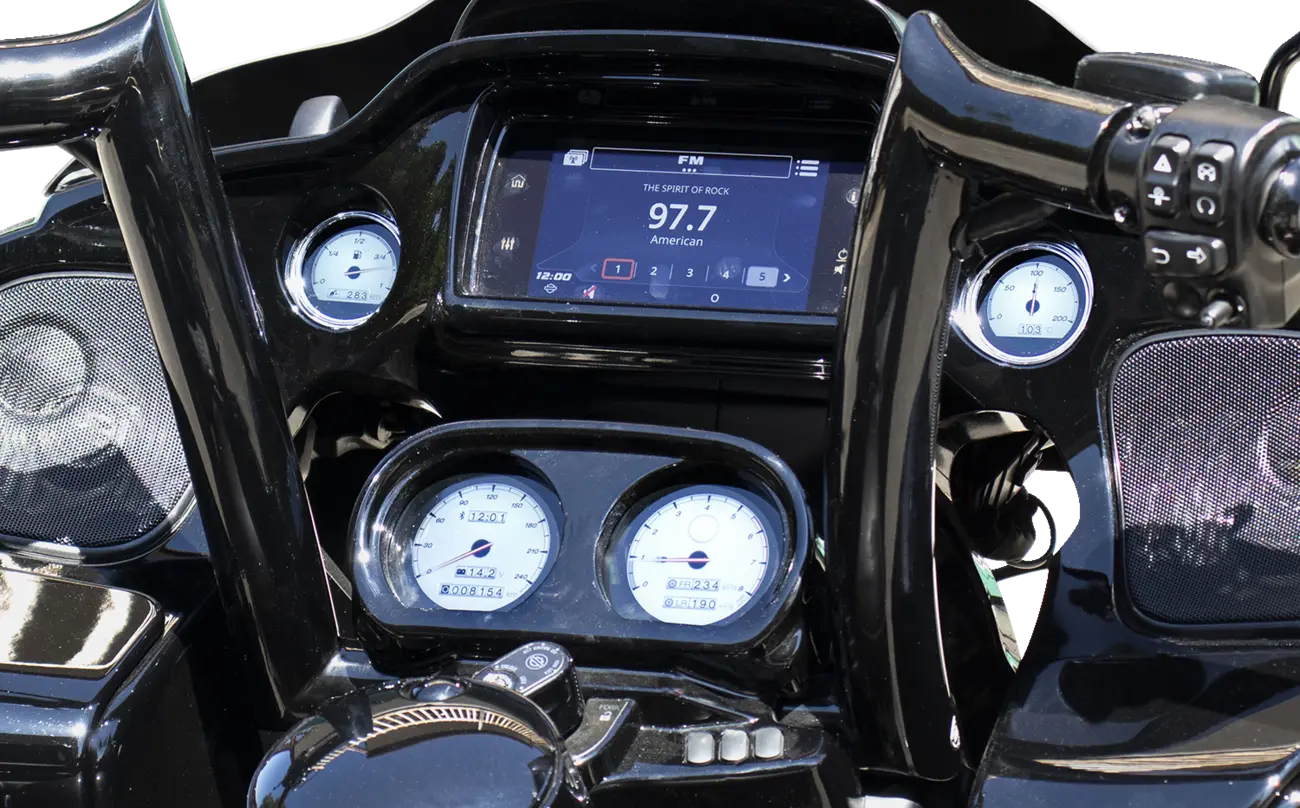

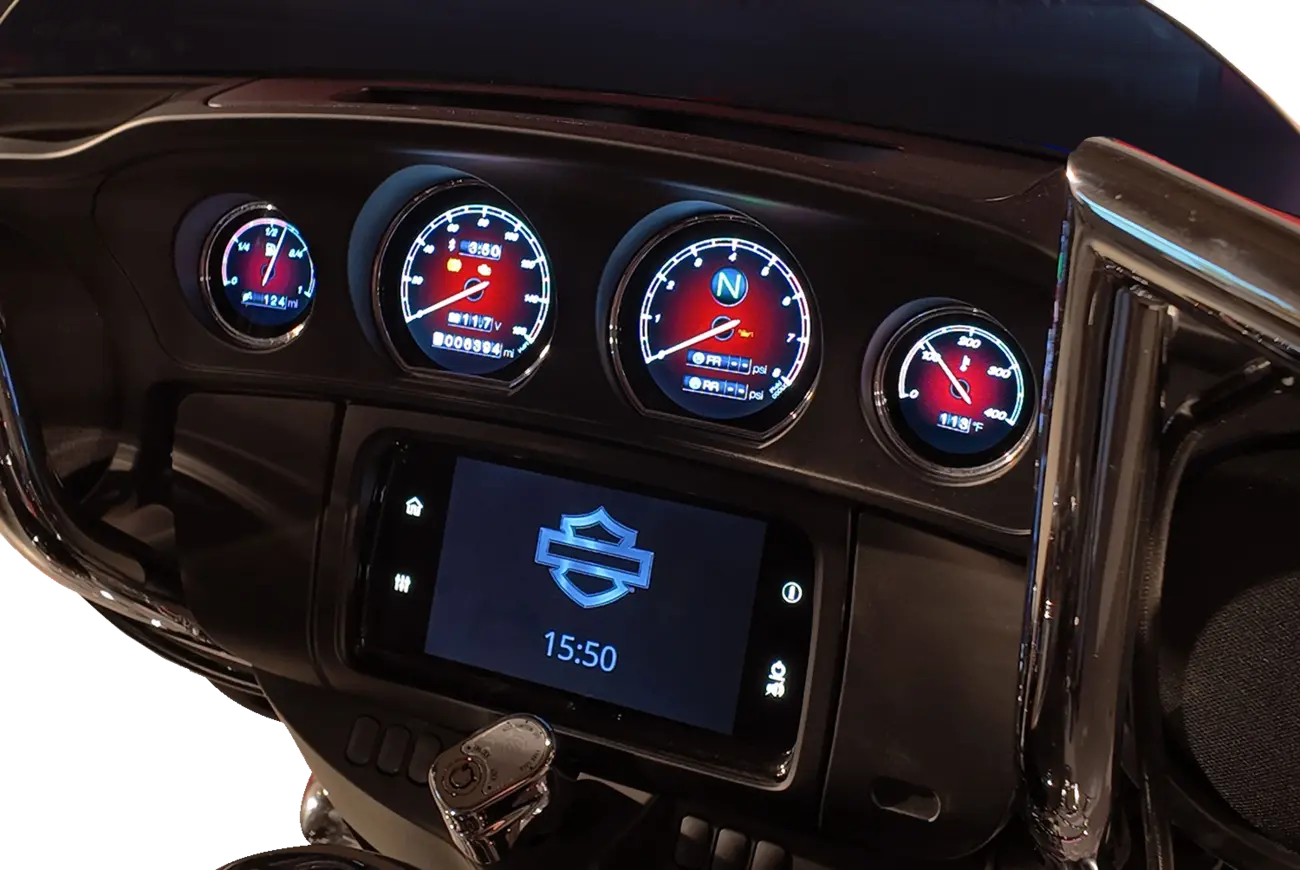

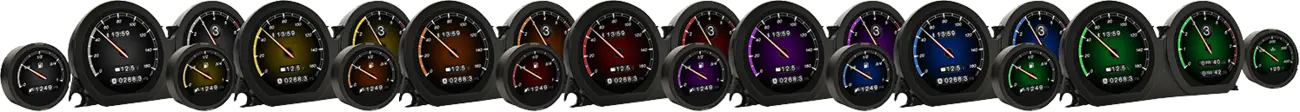

Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations

K Link app also allows to check system health and maintenance with its diagnostics feature

Optional air pressure sensor for models equipped with air suspension is available separately

Specifications:

Tachometer (0 - 8,000), RPM Shift Light (1,000 - 8,000 RPM), Maximum RPM (0 - 8,000 RPM)

Speedometer (0 - 199 MPH), Maximum Speed Record (0 - 199 MPH), Overspeed Warning (20 - 199 MPH)

Odometer (0 - 999,999 miles), Tripmeter A/B (0 - 9,999 miles), Mileage Maintenance (300 - 10,000 miles)

Engine Temperature (40°F - 572°F), Oil Temperature Meter (32°F - 248°F), Maximum Oil Temperature Record (40°F - 572°F) Effective Temperature Range (-4°F - 140°F)

Volt Meter (DC 8V - 18V), Effective Voltage (DC 12V)

To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.
