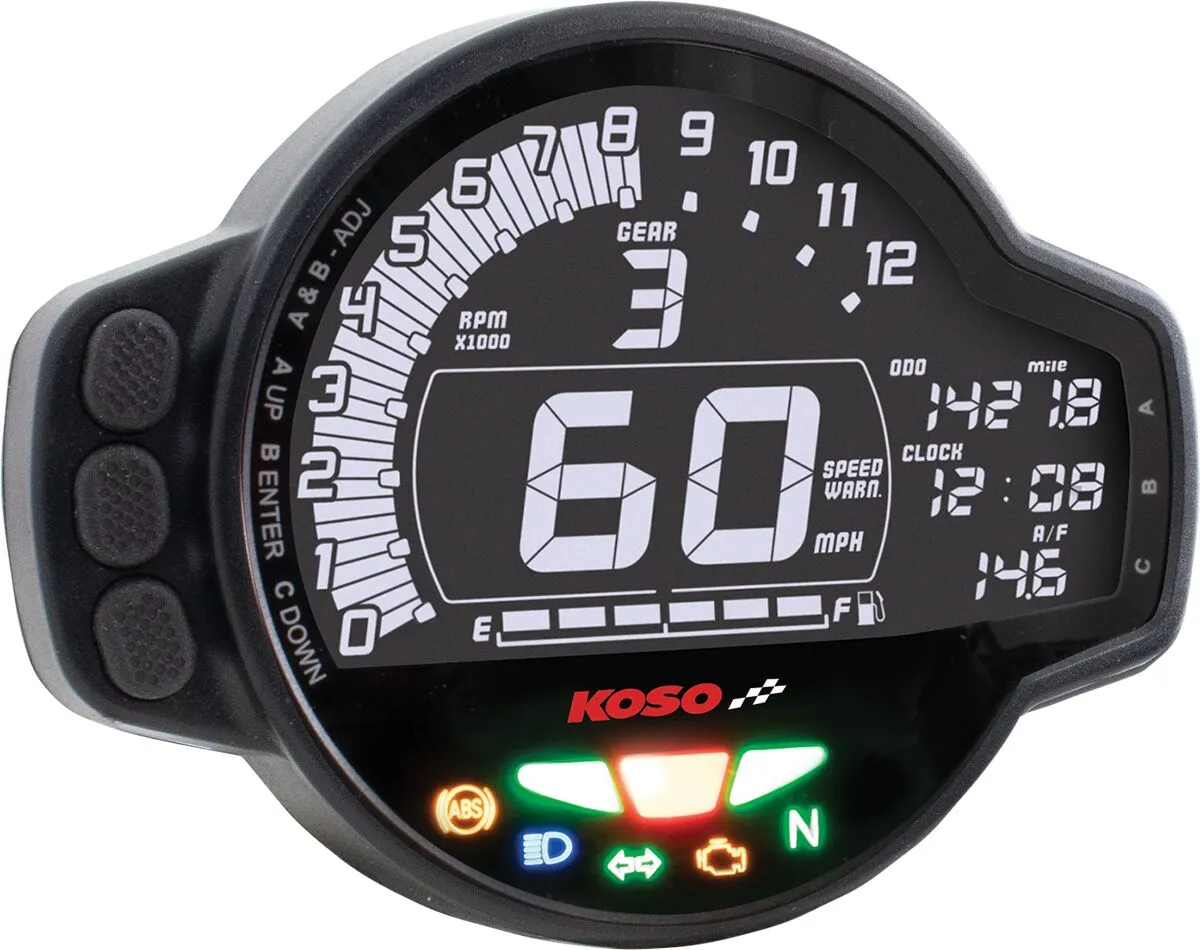

D2 LCD Multifunction Meter

D2 LCD Multifunction Meter

High quality plug & play meter that is equipped with an 8-color changeable LCD display

Designed to mount below cutout top handlebar clamp for a sleek look (handlebar riser kit with gauge cutout or gauge relocation kit may be required depending on application)

Features a tachometer/speedometer combination with a programmable shift light and includes gear indicator

Features vital reads such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor vital signs on bike

Plugs directly into the stock harness and works directly with CANBUS system

Display range: 0-124 mph

Effective temperature range: -4°F-185°F (-20°C-85°C)

12VDC battery voltage

Measures 3-7/16” L x 1-1/16” W x 2-5/8” H

XL models may require purchase of separate fuel level sensor kit (OEM PART #6120008) for fuel meter to function properly.

Kit contains: 1 x LCD Meter, 1 x Meter adapter box and 1 x Zip tie (4.6 x 300mm)

The installation images are for demonstration purposes only. The plate is not included.
