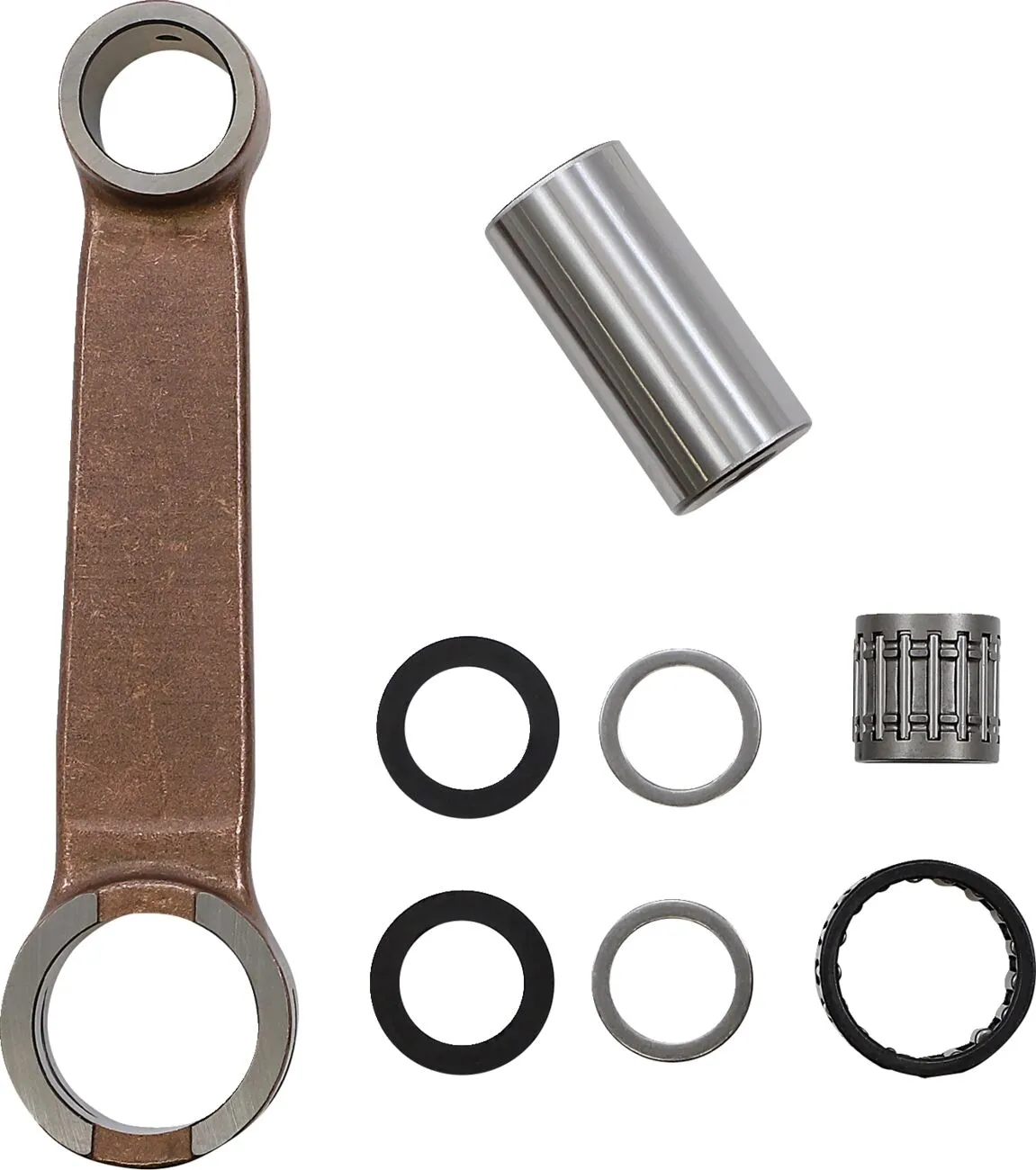

Connecting Rod Kit

Name: Connecting Rod Kit
Brand: HOT RODS
SKU: 09230228
Price: 227.94 EUR
Availability: BackOrder

CONNECTING ROD KFX450R

DUE TO THE INCREASED DIMENSIONS FOR ROD STRENGTH, CHECK FOR CLEARANCE BETWEEN ROD SMALL END O.D. AND CRANKSHAFT WEB, AND IF REQUIRED, GRIND EDGE OF CRANKSHAFT WEB TO ACHIEVE APPROX. 0.030 INCH CLEARANCE BETWEEN ROD SMALL END O.D. AND CRANKSHAFT WEB;AND IF REQUIRED, GRIND EDGE OF CRANKSHAFT WEB TO ACHIEVE APPROX. 0.030 INCH CLEARANCEBETWEEN ROD SMALL END O.D. AND CRANKSHAFT WEB

Article: 09230228

€227.94 incl. VAT

excl. VAT: €189.95

Price history: €227.94

Expected on 07.12.2026

Availability history: 0 ▼ 3

Specifications

Brand: HOT RODS
Vendor Part #: 8671
Displacement: 450 cc
Engine Type: 4-Cycle
Material: 8620 Steel
Riding Style: ATV
Units: Kit
OEM numbers: 13032-0054
Weight: 0.818 kg
Dimensions: 47 x 192 x 90
Barcode: 0723980406487
EAN: 0723980406487

Descriptions

Connecting Rod Kit

Heavy-duty OE replacement connecting rods

Certified 8620 AISI steel provides superior strength

Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc

Features the latest in caged needle roller bearing designs for high rpm longevity

Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm

Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing

Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses

Double honing produces an ultra-round bearing surface for reliability at high rpm

Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers

Made in the USA

Compatible with Hot Rods and OE crankshafts.
