Adventure Set TRAX ADV (158 Liters)

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminium case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the Street-Rack guarantee an optimal fit and secure grip for aluminium cases.

For even more storage (total capacity: 158 Liters), this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

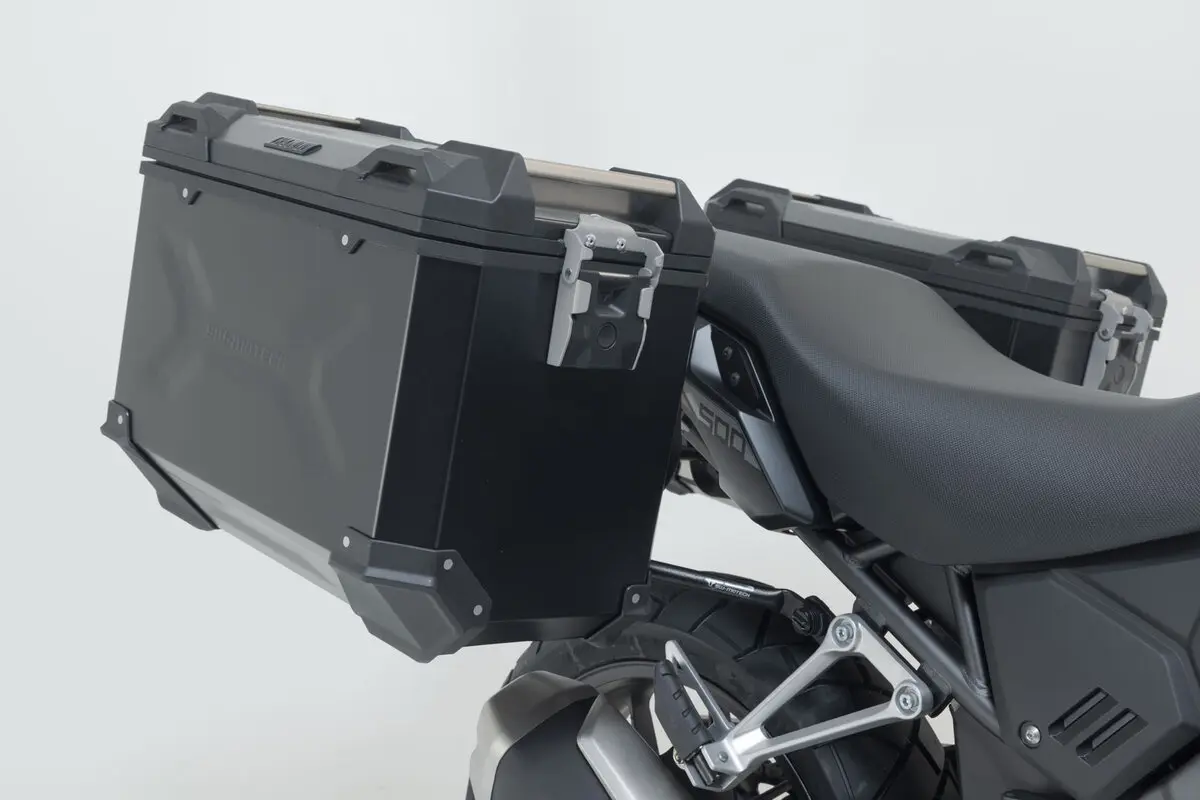

TRAX ADV L (45 LITERS) ALUMINIUM CASE (LEFT & RIGHT):

Protection against oxidation and abrasion thanks to anodized finish.

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps.

Robot-guided welding and self-piercing riveting prevent dampness from getting in.

Even when loaded, completely removable lid with quick-release fastener.

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag).

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail.

Hinges made from stainless steel; handles made from anodized aluminium.

Lid limiters provide additional stability when using extra luggage on the lid.

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in.

Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in. Total Weight: appr. 5,4 kg / appr. 11.9 lb. Total Volume: 45,0 l (each).

TRAX ADV TOP CASE (38 LITERS):

Protection from corrosion and wear due to black powder coating.

Premium top case made from 1.5 mm-thick aluminium.

Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points.

100% water- and dustproof due to robotic welding and punch rivet technology.

Theft protection: Case lid and case can be locked when on the carrier.

High stability thanks to the visually appealing and functional embossed sheet metal.

Additional protection from corners made of glass Fiber-reinforced polyamide.

Easy to clean surface.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in.

Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in. Total Weight: appr. 4,8 kg / appr. 10.6 lb. Total Volume: 38,0 l.

TRAX WP M/L ACCESSORY BAGS:

Waterproof accessory bag that can be lashed onto side cases.

15 litres of additional storage, padded.

Circumferential, waterproof zipper enables quick access to the entire contents.

Overlapping lid is secured using plastic clips.

Divider for custom organisation of the interior.

Made of robust, easy to clean material.

Sleek design with reflective details.

Sturdy carrying handle.

8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm).

Note: The TRAX WP M/L accessory bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.

Material: 500 Denier Polyester. Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in

Total Weight: appr. 1,3 kg / appr. 2.9 lb. Total Volume: 15,0 l (each).

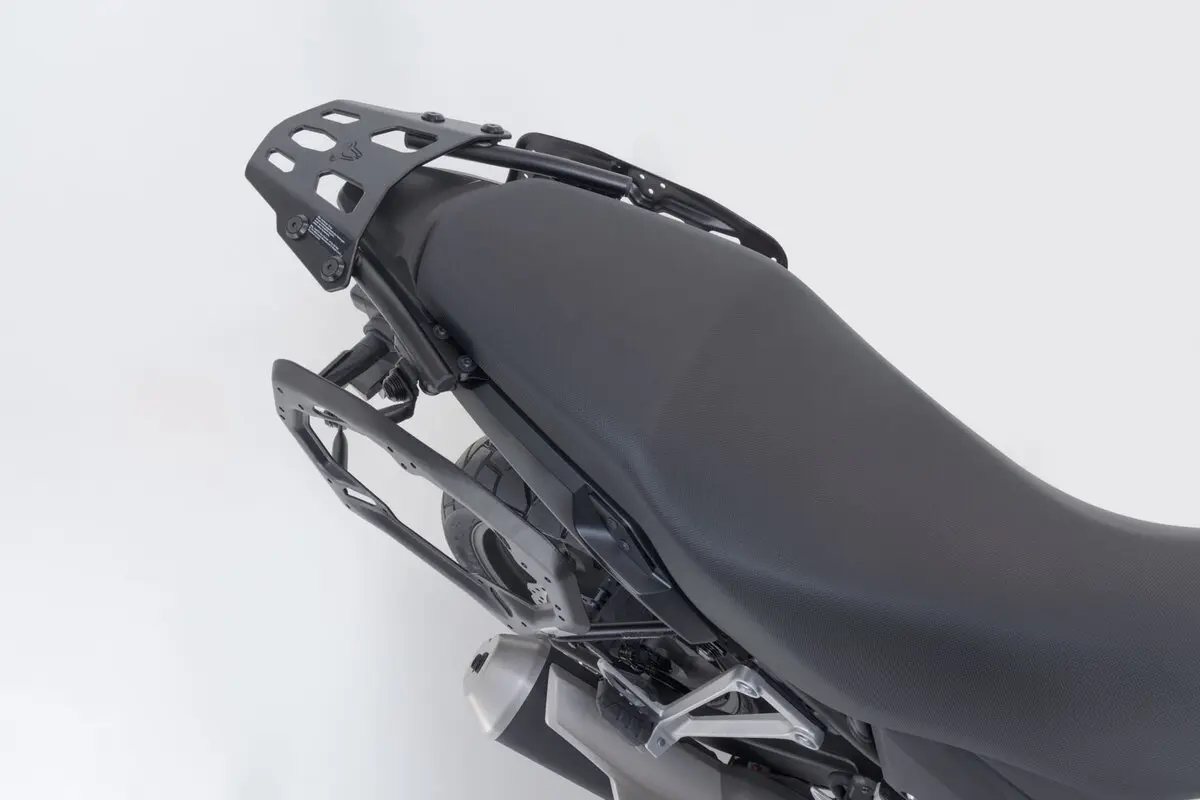

PRO SIDE CARRIER (LEFT & RIGHT):

Extremely durable due to its optimized shape and 2.5 mm thick steel.

Perfect fit, designed to fit close to the bike.

Fully removable with newly developed, even more robust quick-release fasteners.

For permanent mounting, quick-release fasteners can be replaced with standard parts (M8).

Numerous functional bores.

Simple mounting on original mounting points.

Powerful corrosion protection thanks to powder coating.

Material: Steel. Total Weight: appr. 5,0 kg / appr. 11.1 lb. Width built onto motorcycle: 45,5 cm / 17.9 in.

ADAPTER KIT FOR PRO SIDE CARRIERS:

Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier.

Mounted on to the existing holes of the SW-MOTECH PRO side carrier.

Total Weight: appr. 0,3 kg / appr. 0.7 lb.

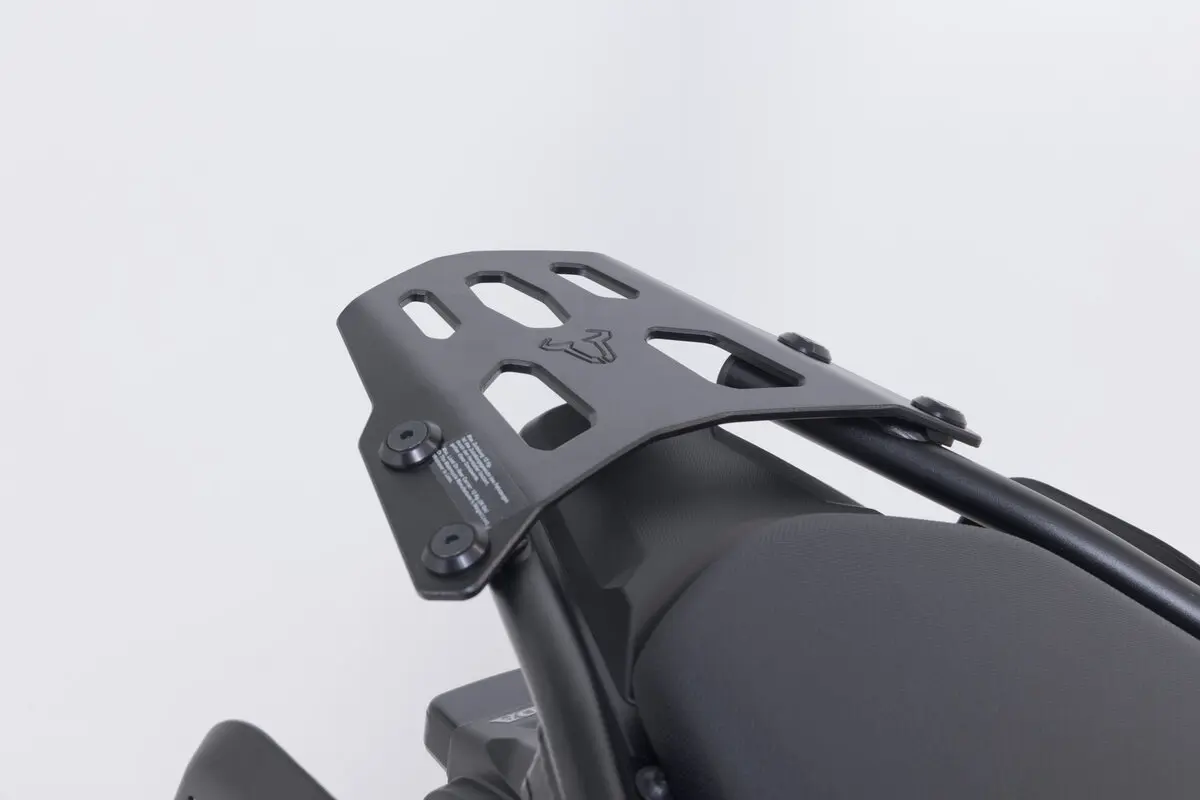

STREET-RACK:

Perfect fit due to bike-specific attachments and high-precision CNC production processes.

Compact shape complements the lines of sporty motorcycles and small street bikes.

Simple assembly at the original mounting points.

Effective corrosion protection from black powder coating.

Made of lightweight yet robust, 5 mm thick aluminium alloy.

An extension that considerably increases the contact surface is available for strapping on large tail bags to the Street-Rack.

Material: Aluminium. Material strength: 0,50 cm / 0.20 in.

Total Weight: appr. 2,8 kg / appr. 6.2 lb.

Note: Passenger grip bars must be dismantled.

ADAPTER PLATE FOR STREET-RACK:

The adapter kit included in delivery is compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH.

The adapter plate can be securely locked to the Street-Rack without the use of tools.

Adapter kits for other products can be purchased separately and allow you to modify the adapter plate.

The rotating cam latch on the adapter plate features a safety mechanism that guarantees a secure connection for your luggage.

Large surface area and hole pattern allow easy attachment of soft luggage.

Made from rugged, glass fibre reinforced synthetic material.

Material: Fiberglass reinforced plastic. Size: 29,0 x 25,2 cm / 11.4 x 9.9 in.

Total Weight: appr. 0,6 kg / appr. 1.4 lb.

TRAX LOCK SET WITH PRO ANTI-THEFT PROTECTION:

9 matching locks with anti-theft protection for PRO side carrier.

Compatible with side cases and top cases from the TRAX ADV and TRAX ION series.

One key for all locks.

Total Weight: appr. 0,5 kg / appr. 1.0 lb.

MULTI-TOOL KEY CHAIN ATTACHMENT:

Multitool as practical key chain.

Quick-release fastener opener for EVO and PRO side carriers.

Hex key (14 mm) - ideal for many motorcycle mirrors.

Hex keys in four additional sizes (8, 10, 12, 13 mm).

Bottle opener.

Key chain eyelet.

Material: Stainless steel. Total Weight: appr. 0,0 kg / appr. 0.1 lb.

SCOPE OF DELIVERY: 1 x TRAX ADV Top Case, 38,00 l, 1 x TRAX ADV L Aluminium Case, 45,00 l (left), 1 x TRAX ADV L Aluminium Case, 45,00 l (right), 2 x PRO Side Carrier, 2 x Adapter Kit for PRO Side Carrier, 2 x TRAX Lock Set with PRO Anti-theft Protection, 1 x Street-Rack, 1 x Adapter Kit for Street-Rack, 3 x TRAX Lock Set, 2 x TRAX WP M/L Accessory Bag, 6 x Lid Limiters, 3 x Storage Bags, 1 x Multi-tool Key Chain Attachment, Mounting Instructions & Mounting Material.

Aluminium, Stainless Steel, 500 Denier Polyester & Fiber-glass Reinforced Polyamide.
