Adventure Set TRAX ADV (150 Liters)

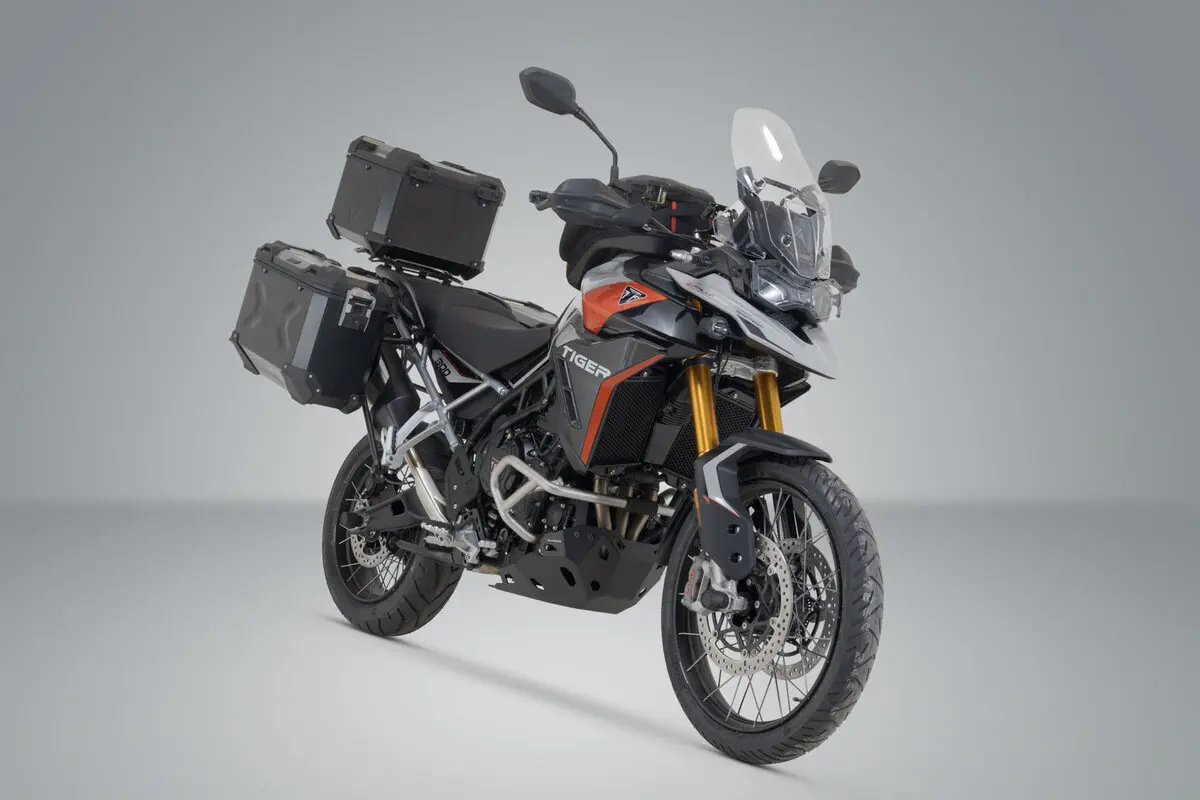

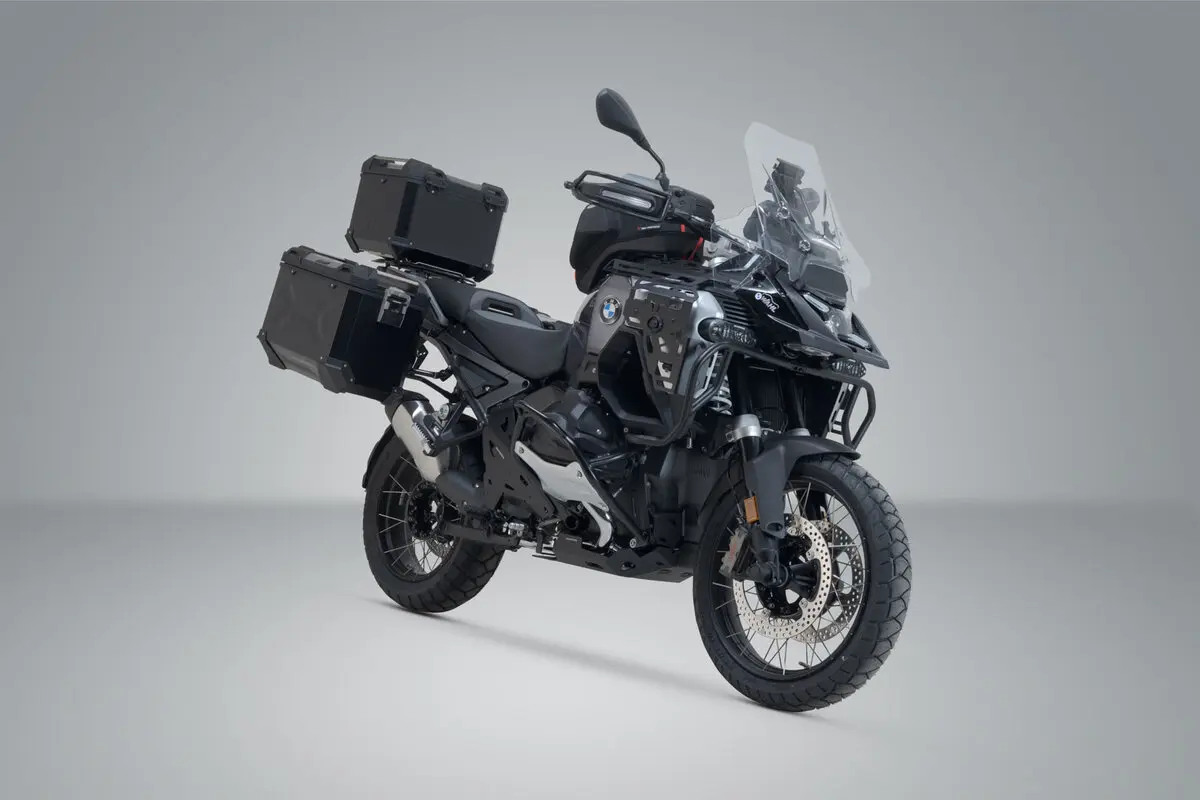

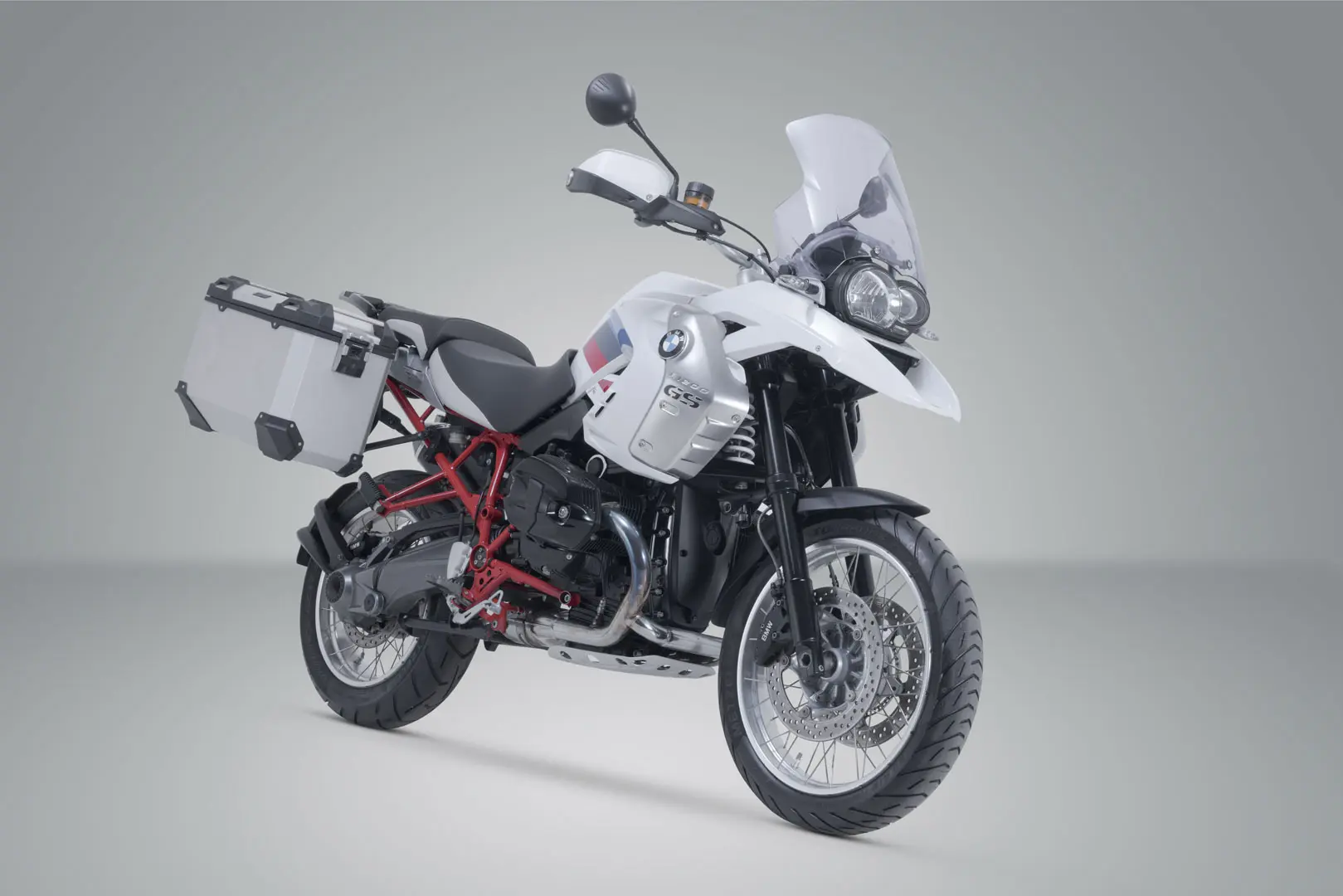

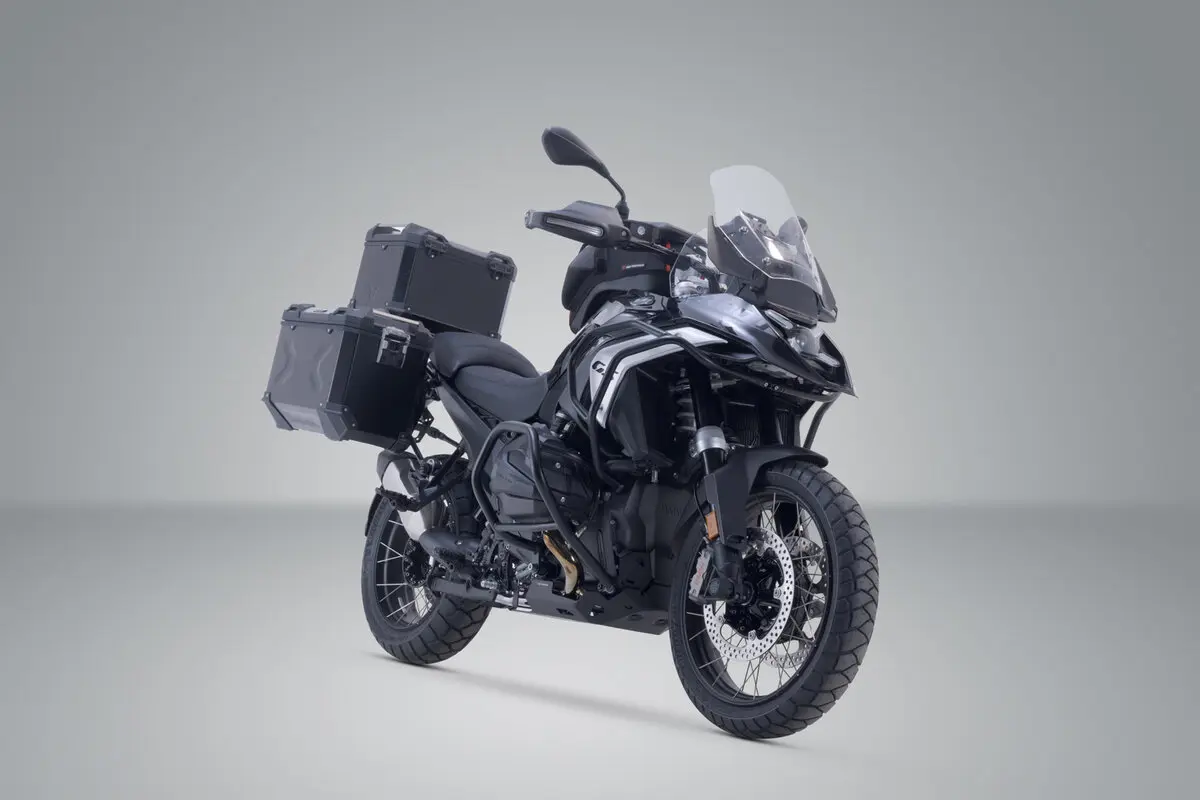

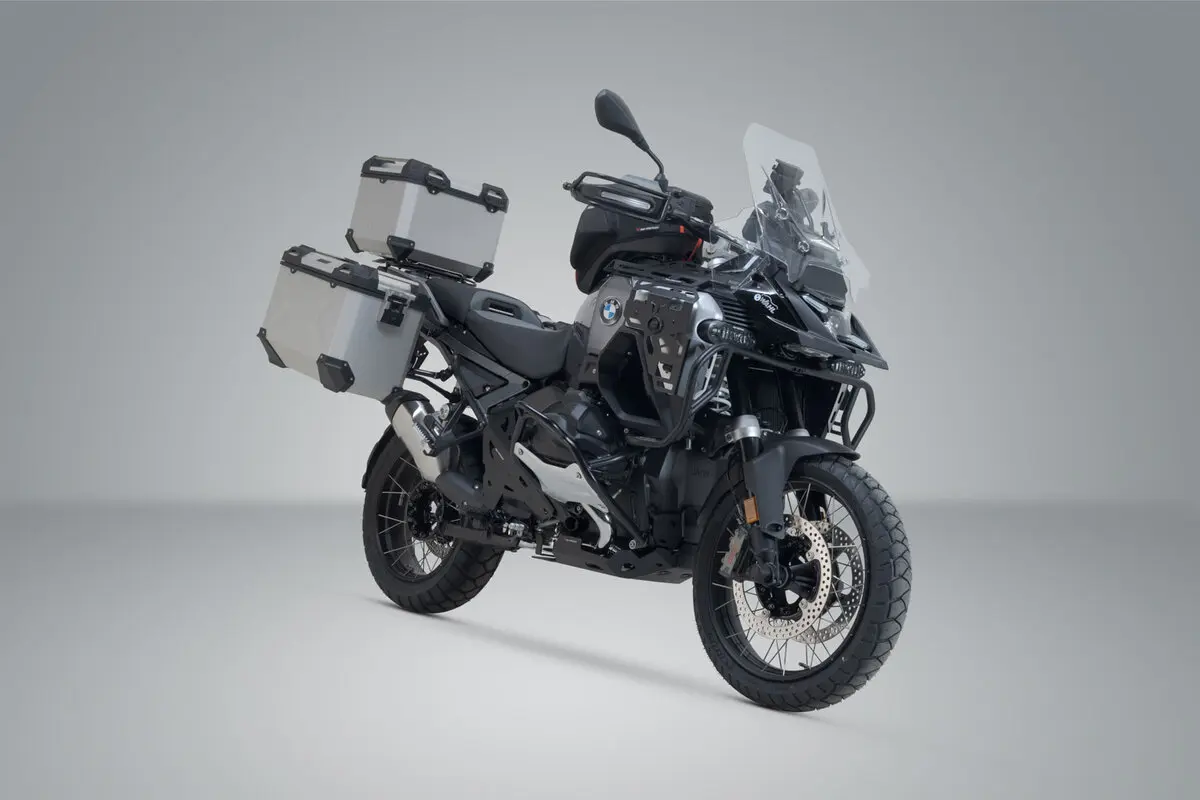

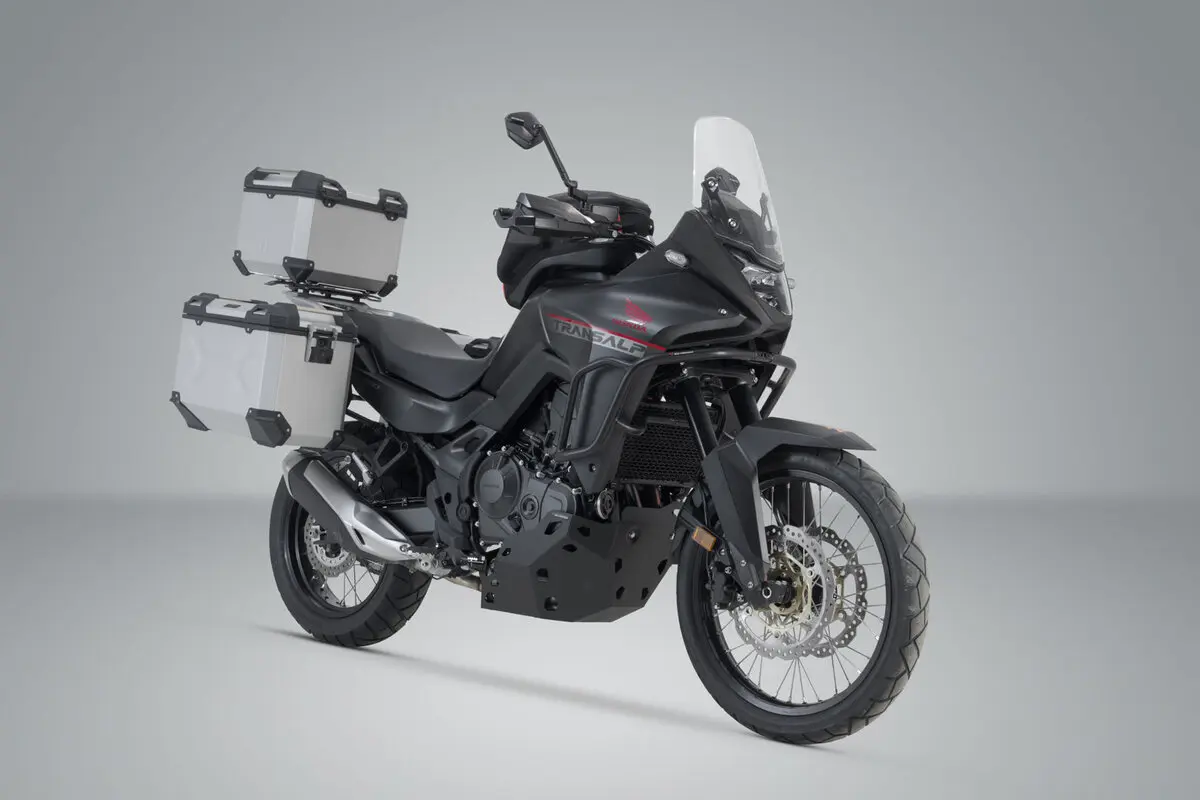

This set is the all-round, care-free pack for any tour. The water and dust-tight TRAX ADV premium aluminium case, two side cases and a top case offer your luggage the best protection. The bike-specific development of the detachable PRO side carrier and the Adventure-Rack guarantee an optimal fit and secure grip for aluminium cases.

For even more storage (total capacity: 150 Liters), this adventure set contains two TRAX M/L expansion bags. These are fastened to the side cases, are water-tight and the contents can be especially quickly accessed.

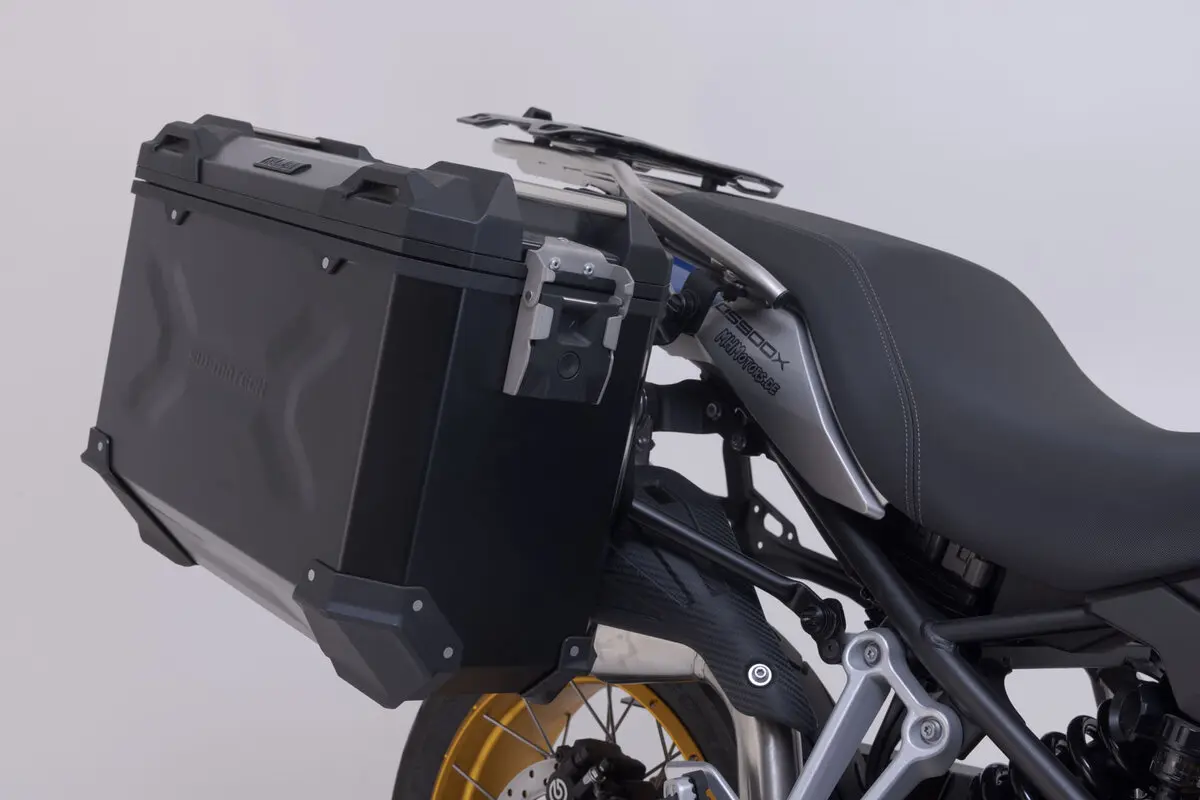

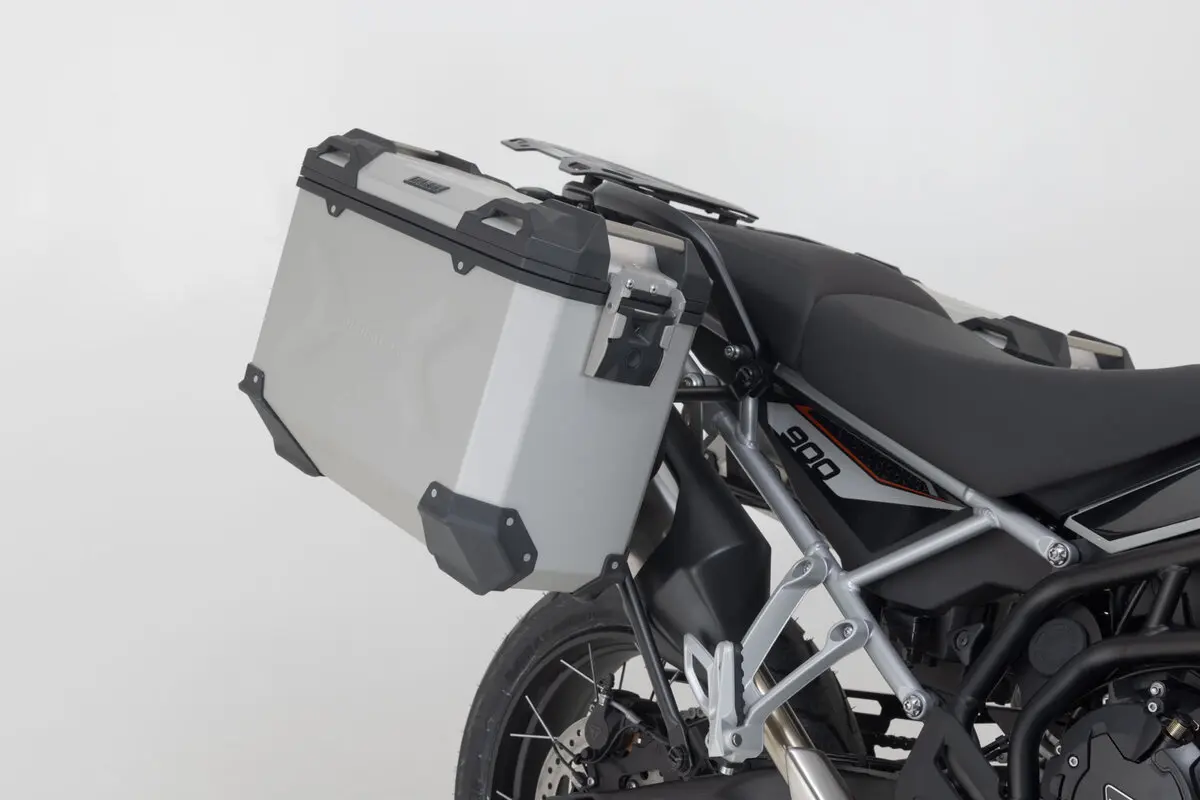

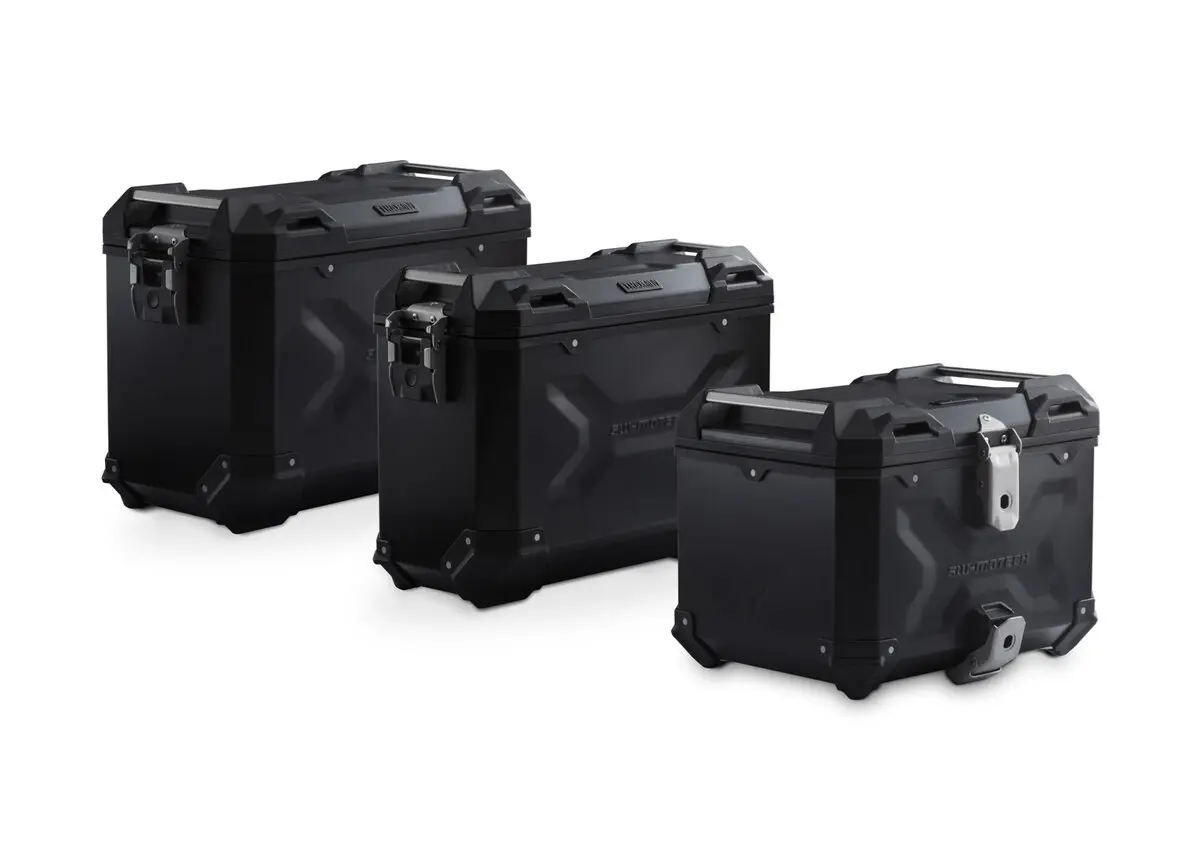

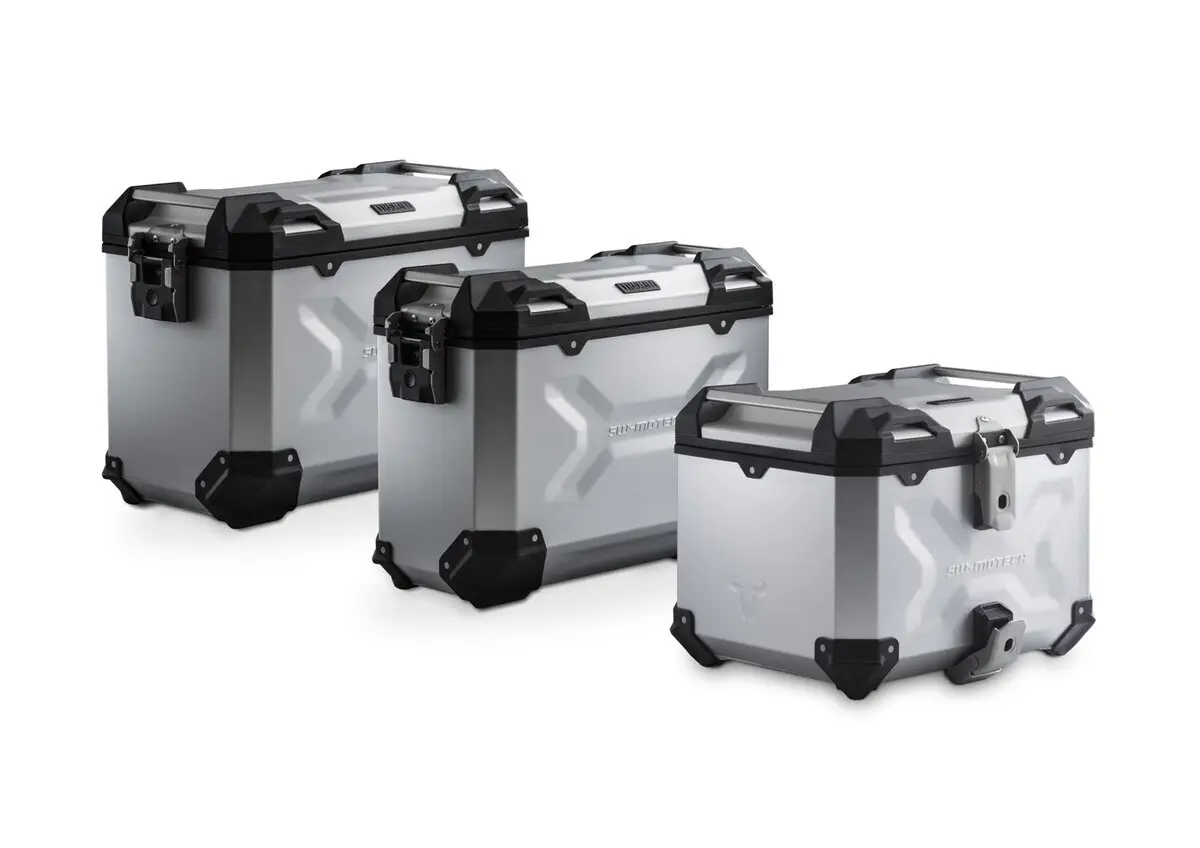

TRAX ADV L (45 LITERS) ALUMINIUM CASE (LEFT):

Protection against oxidation and abrasion thanks to anodized finish.

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps.

Robot-guided welding and self-piercing riveting prevent dampness from getting in.

Even when loaded, completely removable lid with quick-release fastener.

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag).

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail.

Hinges made from stainless steel; handles made from anodized aluminium.

Lid limiters provide additional stability when using extra luggage on the lid.

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in.

Size: 49,0 x 28,0 x 37,0 cm / 19.3 x 11.0 x 14.6 in. Total Weight: appr. 5,4 kg / appr. 11.9 lb. Total Volume: 45,0 l.

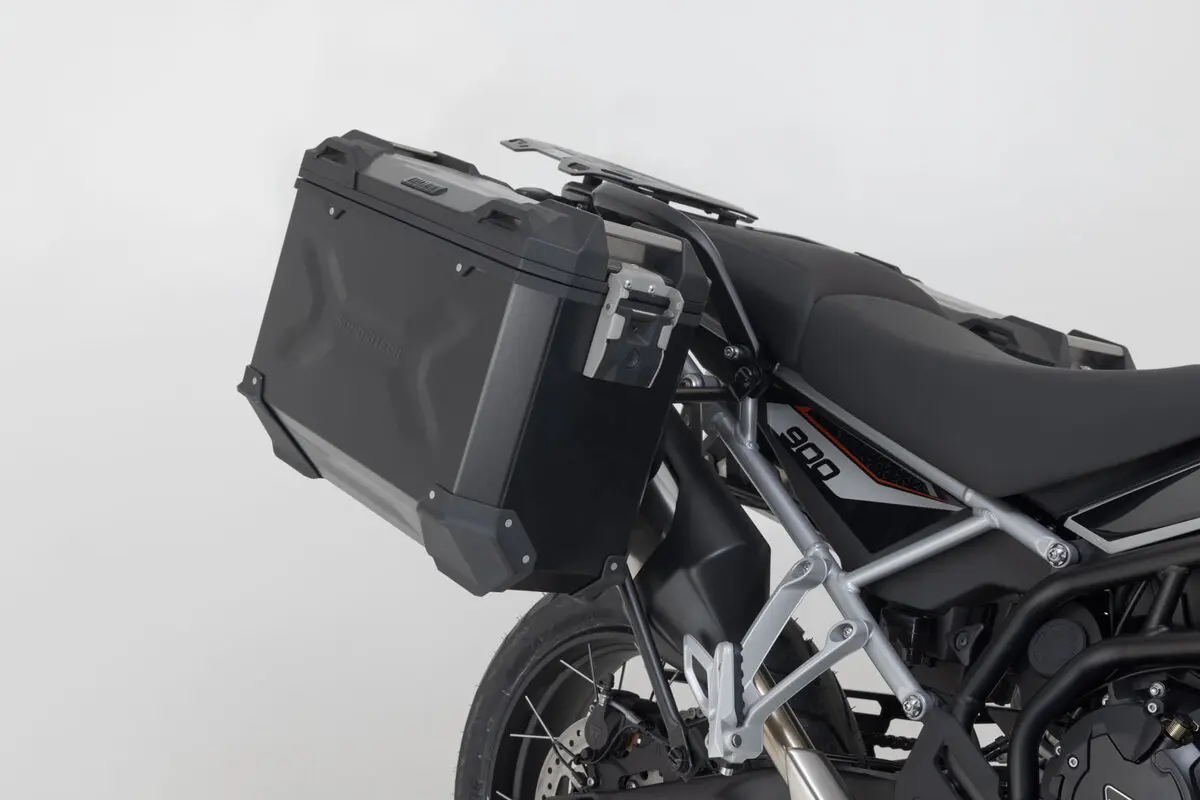

TRAX ADV M (37 LITERS) ALUMINIUM CASE (RIGHT):

Protection against oxidation and abrasion thanks to anodized finish.

Large chamfer on sides for plenty of ground clearance for cornering, additional protection from glass fibre reinforced plastic corner caps.

Robot-guided welding and self-piercing riveting prevent dampness from getting in.

Even when loaded, completely removable lid with quick-release fastener.

4 large tie-downs integrated into the lid design (e. g. for a tent or accessory bag).

High stability thanks to the embossed patterns, welded edges and pre-installed retaining rail.

Hinges made from stainless steel; handles made from anodized aluminium.

Lid limiters provide additional stability when using extra luggage on the lid.

The membrane makes it easy to open the lid, even in case of extreme pressure and temperature fluctuations.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in.

Size: 49,0 x 23,0 x 37,0 cm / 19.3 x 9.1 x 14.6 in. Total Weight: appr. 5,1 kg / appr. 11.2 lb. Total Volume: 37,0 l.

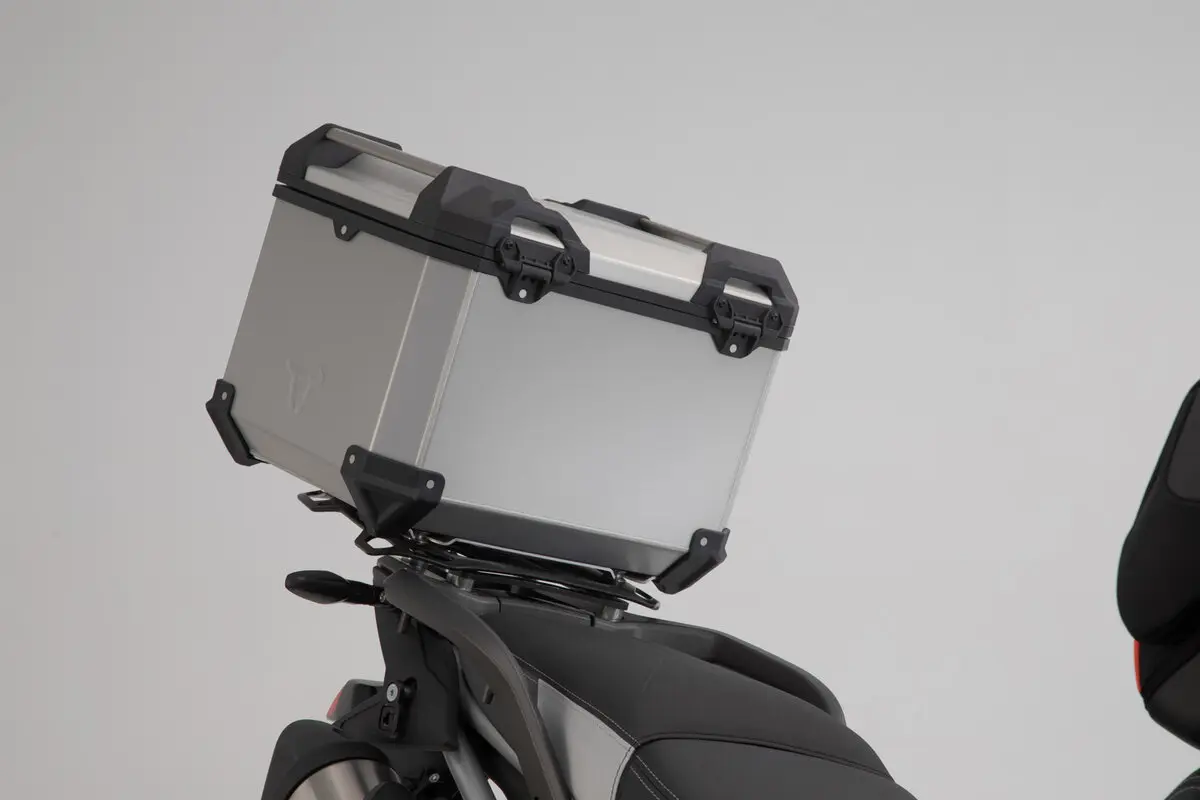

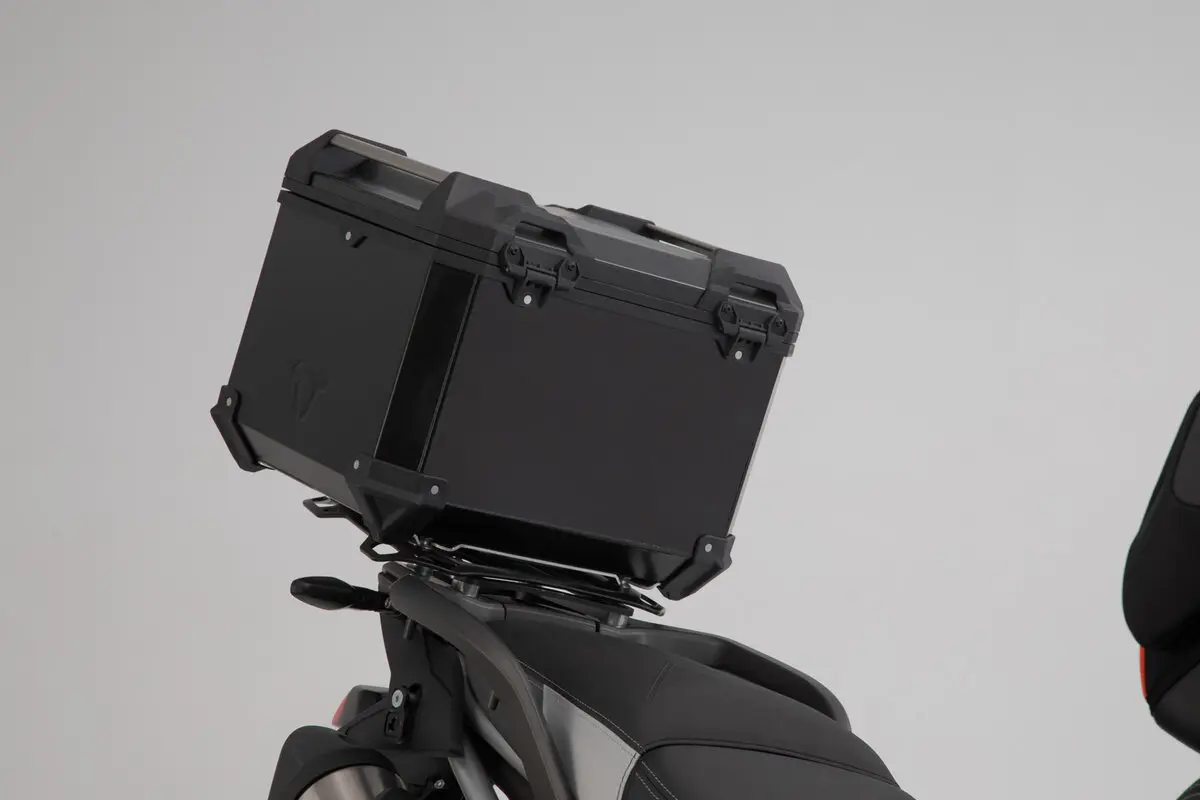

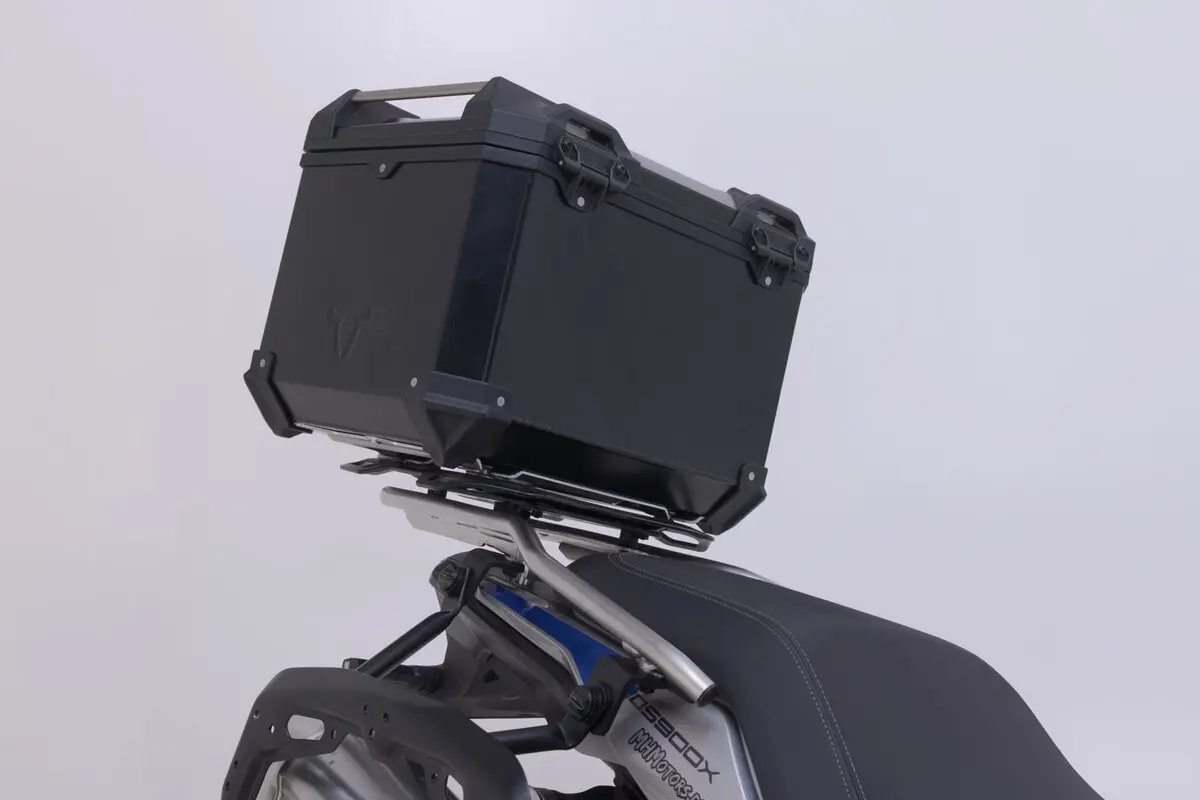

TRAX ADV TOP CASE (38 LITERS):

Protection from corrosion and wear due to black powder coating.

Premium top case made from 1.5 mm-thick aluminium.

Hinged lid with lid limiter, stainless steel latch, sturdy carrying handles and integrated mounting points.

100% water and dustproof due to robotic welding and punch rivet technology.

Theft protection: Case lid and case can be locked when on the carrier.

High stability thanks to the visually appealing and functional embossed sheet metal.

Additional protection from corners made of glass fiber-reinforced polyamide.

Easy to clean surface.

Material: Aluminium. Material strength: 0,15 cm / 0.06 in

Size: 41,0 x 34,0 x 33,0 cm / 16.1 x 13.4 x 13.0 in. Total Weight: appr. 4,8 kg / appr. 10.6 lb. Total Volume: 38,0 l.

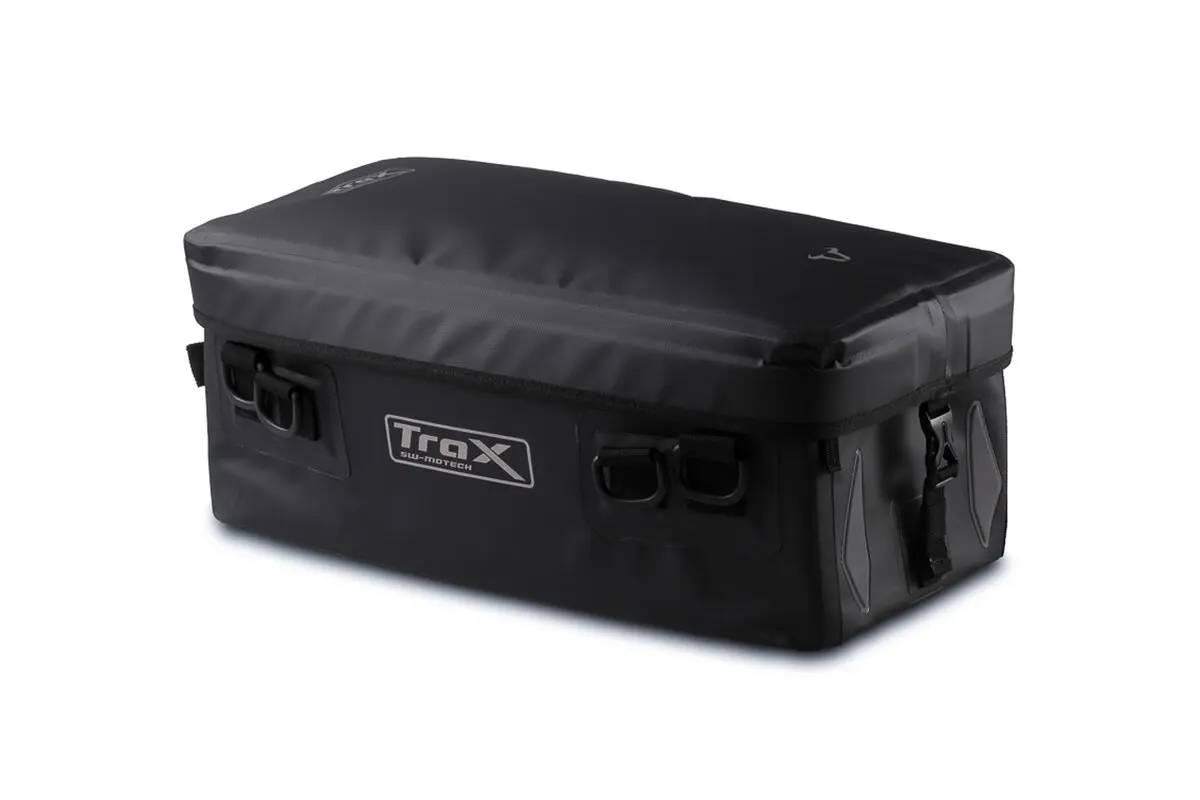

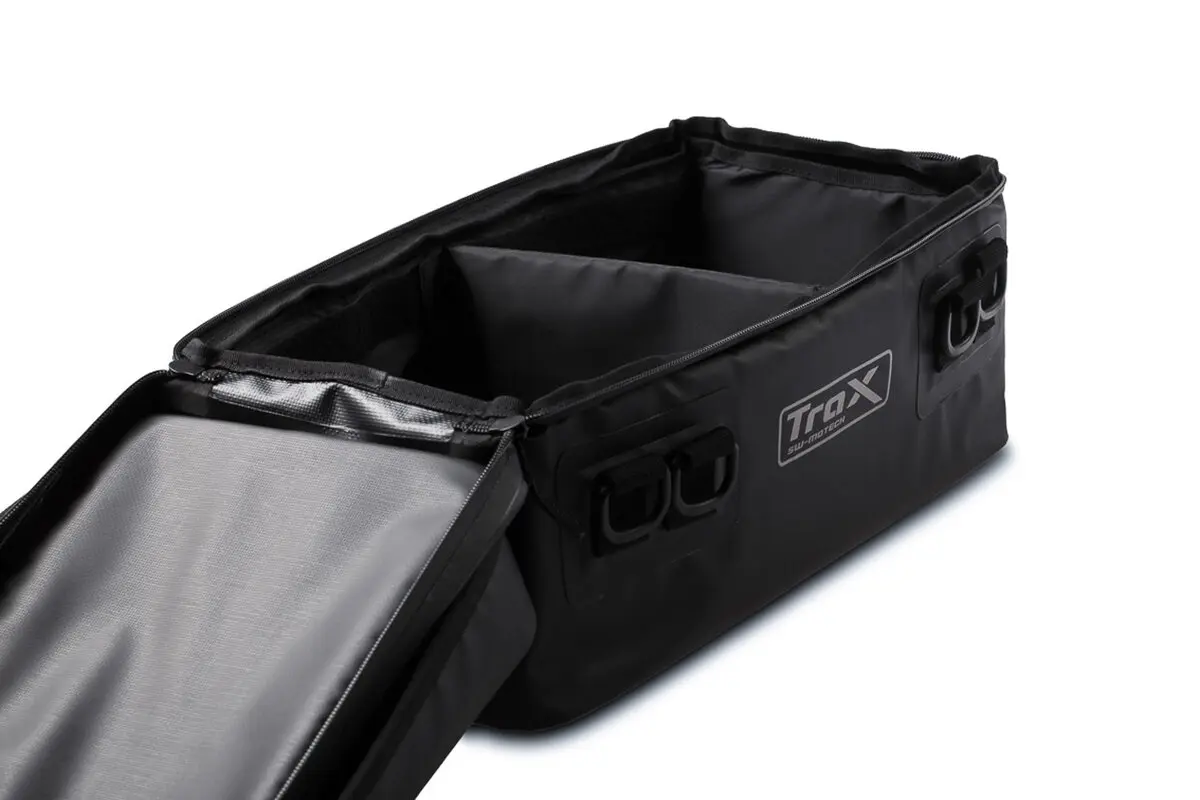

TRAX WP M/L ACCESSORY BAGS:

Waterproof accessory bag that can be lashed onto side cases.

15 litres of additional storage, padded.

Circumferential, waterproof zipper enables quick access to the entire contents.

Overlapping lid is secured using plastic clips.

Divider for custom organisation of the interior.

Made of robust, easy to clean material.

Sleek design with reflective details.

Sturdy carrying handle.

8 D-rings offer flexible lashing options (spacing of the inner D-rings: approx. 24 cm, spacing of the outer D-rings: approx. 32 cm).

Note: The TRAX WP M/L accessory bag fits perfectly on the TRAX ADV and TRAX ION side cases from SW-MOTECH.

Material: 500 Denier Polyester. Size: 45,0 x 15,0 x 22,0 cm / 17.7 x 5.9 x 8.7 in.

Total Weight: appr. 1,3 kg / appr. 2.9 lb. Total Volume: 15,0 l (each).

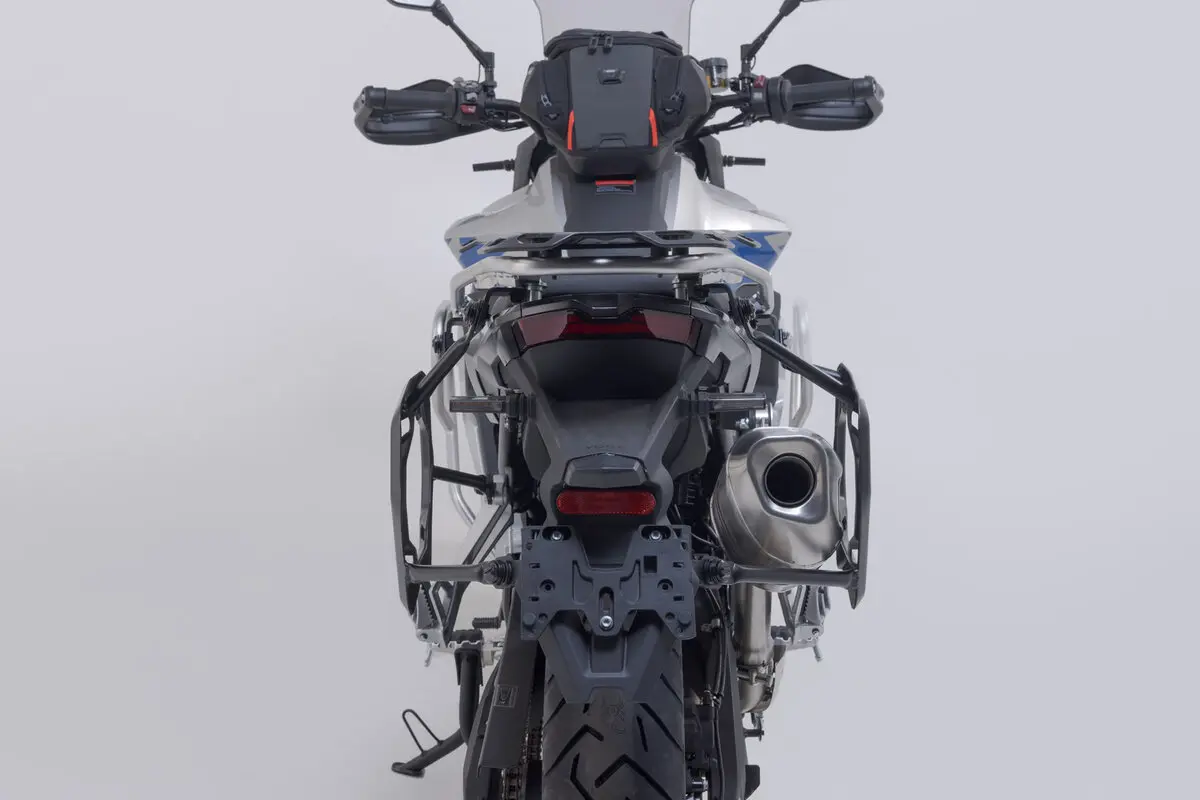

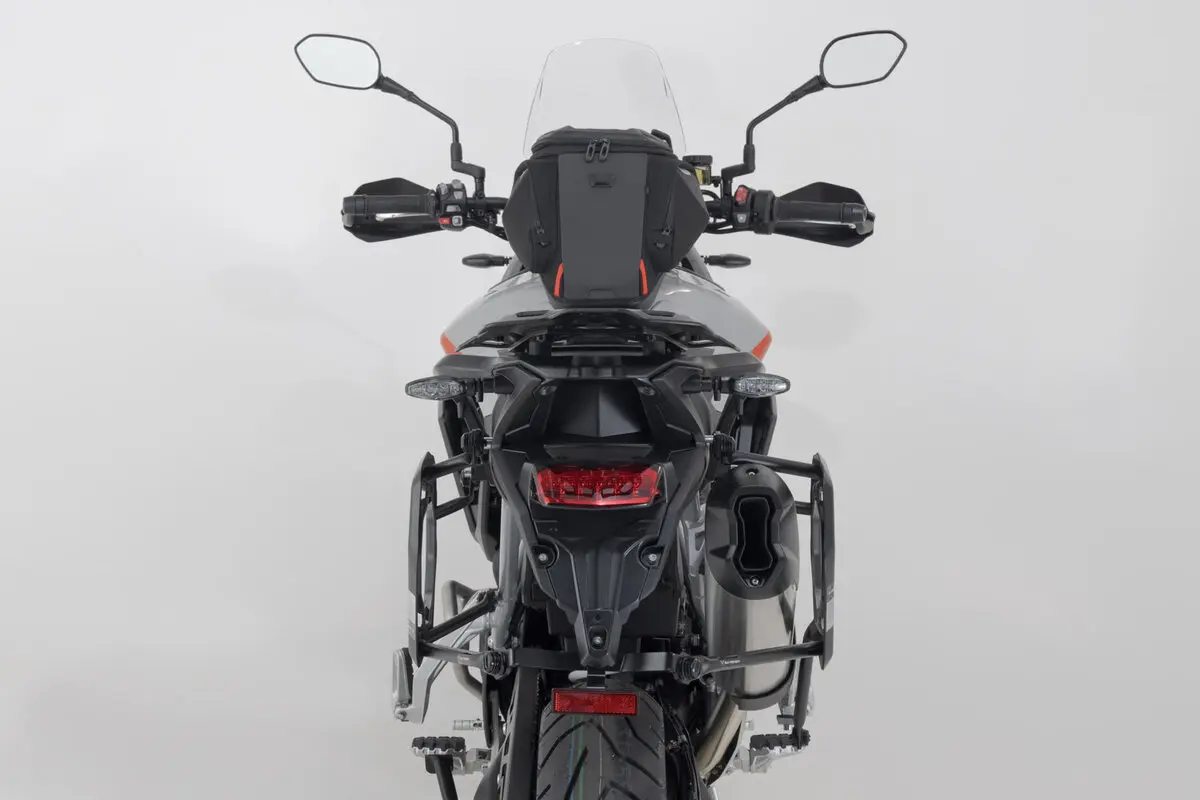

PRO SIDE CARRIER (LEFT & RIGHT):

Extremely durable due to its optimized shape and 2.5 mm thick steel.

Perfect fit, designed to fit close to the bike.

Fully removable with newly developed, even more robust quick-release fasteners.

For permanent mounting, quick-release fasteners can be replaced with standard parts (M8).

Numerous functional bores.

Simple mounting on original mounting points.

Powerful corrosion protection thanks to powder coating.

Material: Steel. Total Weight: appr. 5,0 kg / appr. 11.1 lb. Width built onto motorcycle: 45,5 cm / 17.9 in.

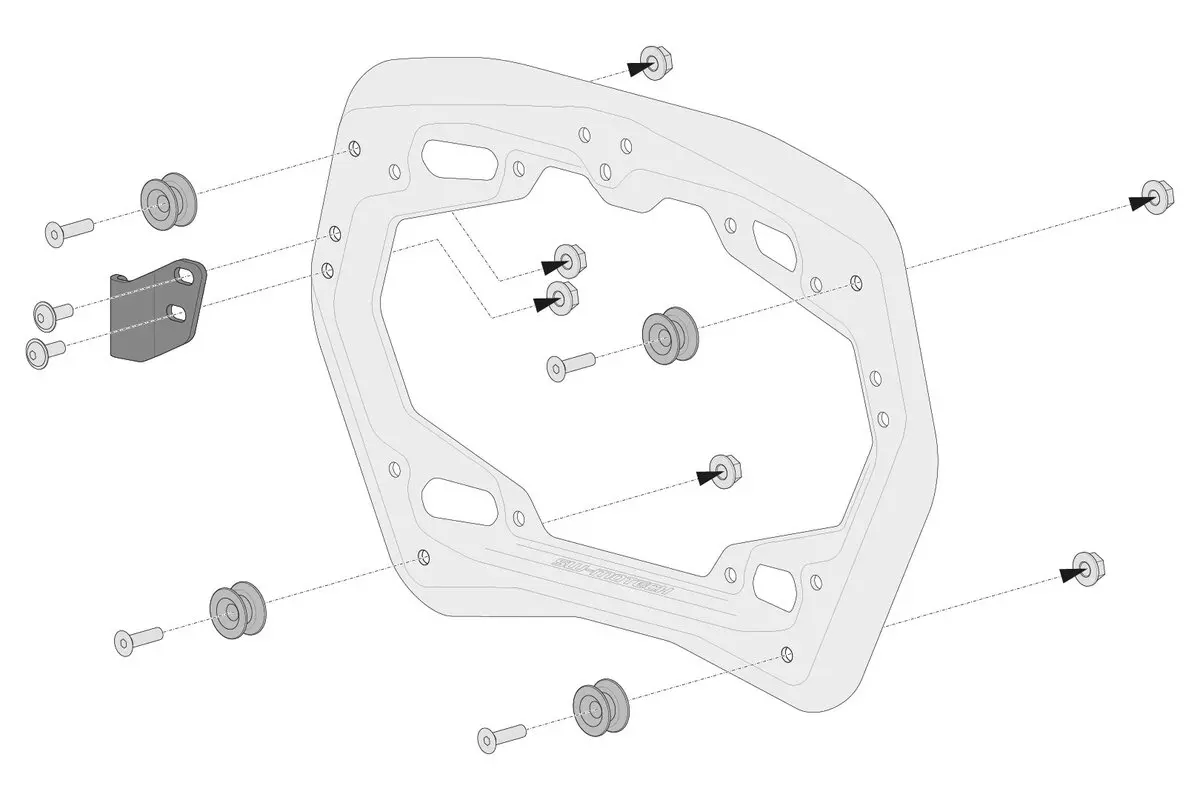

ADAPTER KIT FOR PRO SIDE CARRIER (LEFT & RIGHT):

Adapter kit for attaching a TRAX or NANUK side case to an SW-MOTECH PRO side carrier.

Mounted on to the existing holes of the SW-MOTECH PRO side carrier.

Total Weight: appr. 0,3 kg / appr. 0.7 lb.

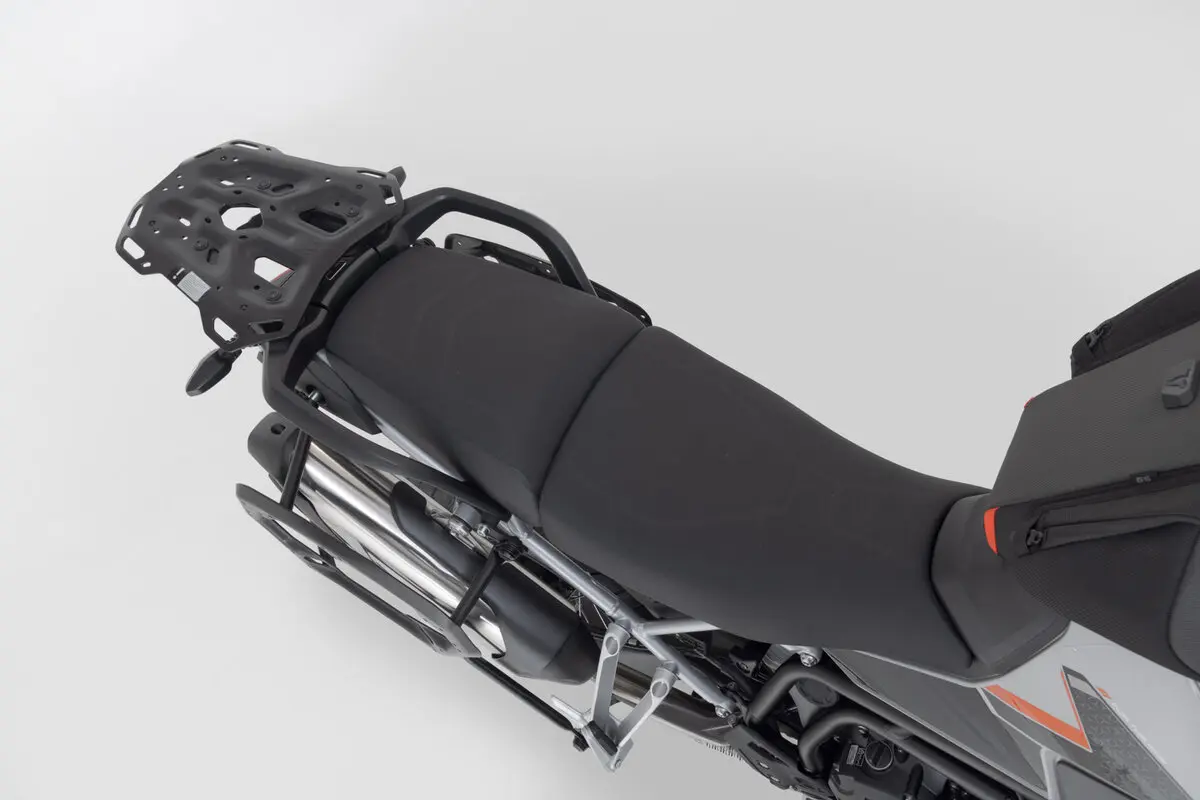

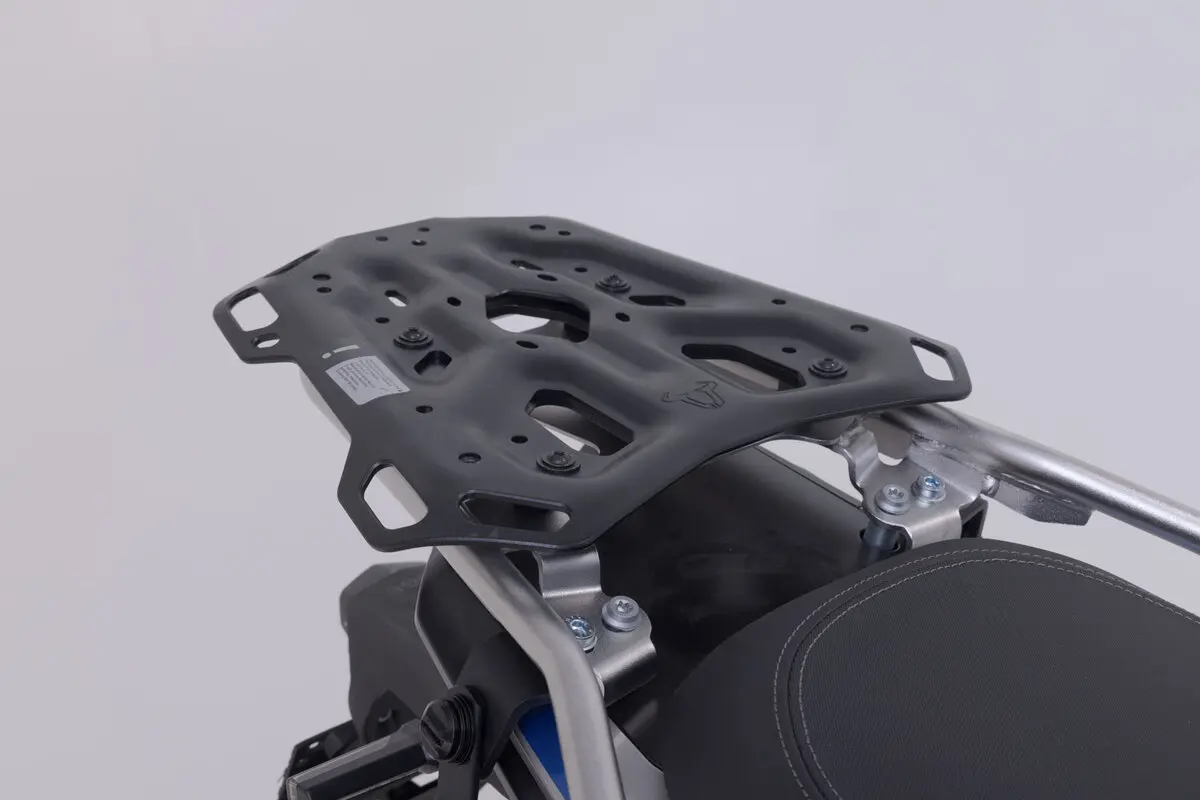

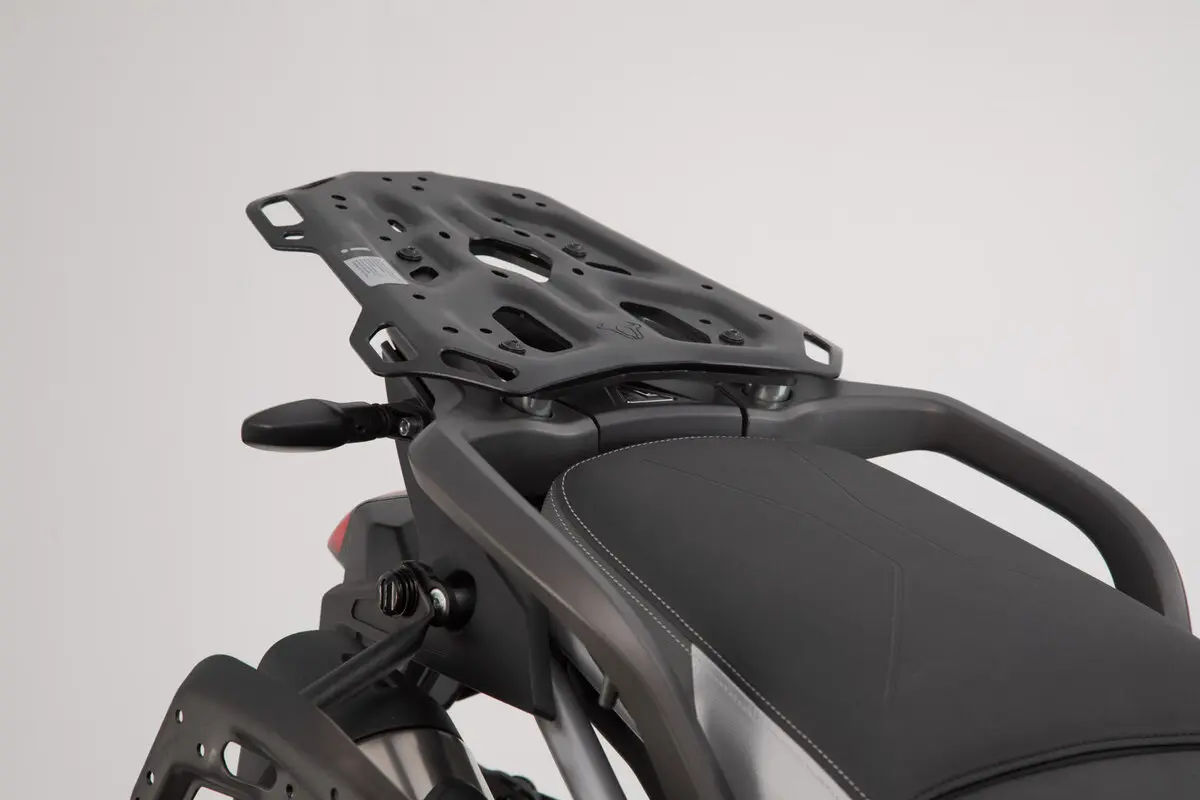

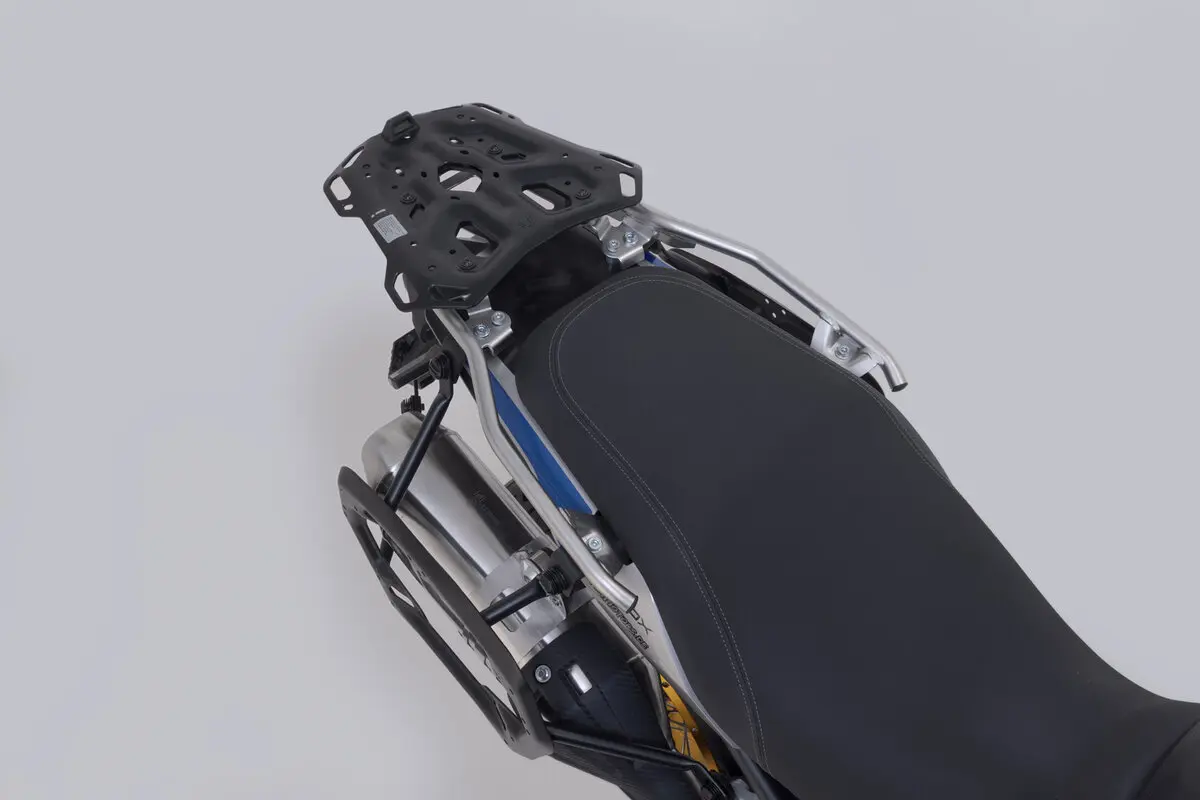

ADVENTURE-RACK:

Extremely robust rack for long tours and off-road rides.

Exclusive manufacturing processes and its optimized shape lend an extra dose of stability to the Adventure-Rack.

Its extreme durability during vibrations, impacts and high weight was tested in the lab and off-road under harshest conditions.

Easy rigging of luggage on numerous, large lashing eyes, threading of 25 mm fasteners possible.

Especially large contact surface (Width: 32.9 cm at the front, 22.5 cm at the back, Length: 30.3 cm).

Easy installation on original attachment points with bike-specific attachment elements.

Effective corrosion protection from black powder coating.

Made of light but sturdy 4mm-thick aluminium alloy.

Material: Aluminium. Total Weight: appr. 1,8 kg / appr. 4.1 lb.

ADAPTER KIT FOR ADVENTURE RACK:

Adapter kit for attaching a TRAX top case onto an Adventure Rack.

Compatible with TRAX ADV, TRAX ION and TRAX EVO top cases by SW-MOTECH.

Easy mounting: the adapter kit is screwed onto the rack.

Material: Polyamide / Stainless steel. Total Weight: appr. 0,2 kg / appr. 0.4 lb.

TRAX LOCK SET WITH PRO ANTI-THEFT PROTECTION:

9 matching locks with anti-theft protection for PRO side carrier.

Compatible with side cases and top cases from the TRAX ADV and TRAX ION series.

One key for all locks.

Total Weight: appr. 0,5 kg / appr. 1.0 lb.

MULTI-TOOL KEY CHAIN ATTACHMENT:

Multitool as practical key chain.

Quick-release fastener opener for EVO and PRO side carriers.

Hex key (14 mm) - ideal for many motorcycle mirrors.

Hex keys in four additional sizes (8, 10, 12, 13 mm).

Bottle opener.

Key chain eyelet.

Material: Stainless steel. Total Weight: appr. 0,0 kg / appr. 0.1 lb.

SCOPE OF DELIVERY: 1 x TRAX ADV Top Case, 38,00 l, 1 x TRAX ADV L Aluminium Case, 45,00 l (left), 1 x TRAX ADV M Aluminium Case, 37,00 l (right), 2 x PRO Side Carrier, 2 x Adapter Kits for PRO Side Carrier, 2 x TRAX Lock Set with PRO Anti-theft Protection, 1 x Adventure-Rack, 1 x Adapter Kit for Adventure-Rack, 3 x TRAX Lock Set, 2 x TRAX WP M/L Accessory Bag, 6 x Lid Limiters, 3 x Storage Bags, 1 x Multi-tool Key Chain Attachment, Mounting Instructions & Mounting Material.

Aluminium, Stainless Steel, 500 Denier Polyester & Glass-Fiber Reinforced Polyamide.
